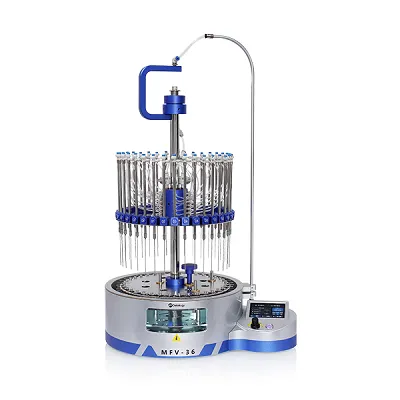

MFV-36 Smart Nitrogen Concentrator Introduction:
Sample processing capacity is upgraded! Equipped with 6 independent groups of channels, brand new MFV-36 guaranteed nitrogen saving & high efficiency, while compatible with different kinds of sample containers.
Technical specification: ● Small Group Control: 6, 12, 18, 24, 30 or 36 gas channels are on independently. ● Each channel is equipped with a dial trim valve which allows fine tuning of gas flow so as to guarantee good parallelism. There is a main valve controlling all channels. ● Press only one button to adjust nozzle height manually and quickly anytime according to the sample liquid level. ● Clear Observation: front-end window with lighting helps observe the whole concentration process. ● Controlled by PID technology, temperature accuracy: ±0.5 °C. Water bath preheating is available. ● Water bath is equipped with intelligent drainage port, making water change convenient and efficient. ● Different concentration tubes are compatible: test tubes, centrifugal tubes, beakers, conical flasks, evaporation bottles, etc.. ● Acceptable sample tube size & volumes: Ø10-29mm, H32-200mm & V1-100ml. ● Classic disc-shaped structure with 360° rotating sample rack allows convenient operation. Specific mixed rack can be customized. ● Sample racks and nitrogen nozzles are made of 316 stainless steel as well as water bath is coated with PTFE for anti-corrosion and durability. ● 5" HD color touchscreen with real-time display of nitrogen pressure, water bath temperature and concentration time. Chinese and English are both supported. ● Manual Mode and Automatic Mode are optional. There will be an automatic alarm after the process is completed. ● Remote monitoring of concentration process is available in a mini program on Wechat, which also allows notification messages are received by users.
Configuration list:
1）MFV-36 Main System
2）36-pos sample rack
3）10ml Test Tube (16×100mm; 100pcs/pkg)
4）Dial Trim Valve
5）Ø1.5mm nitrogen nozzle, 10pcs/pkg
6）Ø2.0mm nitrogen nozzle, 10pcs/pkg
7）Water Bath Module
8）5.0” HD Control Terminal
9）MFV-36 Control Software V1.0
10）Special Tool Kit
11）User Manual
Introduction:
Sample processing capacity is upgraded! Equipped with 6 independent groups of channels, brand new MFV-36 guaranteed nitrogen saving & high efficiency, while compatible with different kinds of sample containers.
