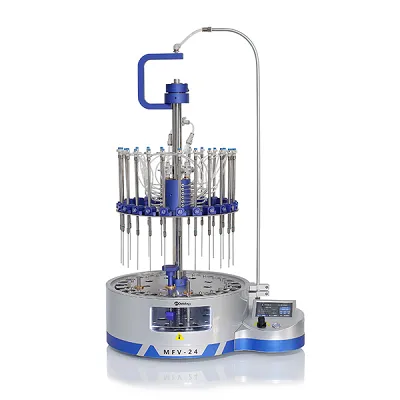

MFV-24 Smart Nitrogen Concentrator Introduction:
MFV-24 processes up to 24 samples simultaneously with advantages of group control, convenient nozzle adjustments and 5" HD color touchscreen. Test tube, centrifugal tube, beaker, conical flask and evaporation bottle are all compatible.
Technical specification: ● Flexible Group Control: 6, 12, 18 or 24 gas channels are on independently. ● Each channel is equipped with a dial trim valve which allows fine tuning of gas flow so as to guarantee good parallelism. There is a main valve controlling all channels. ● Press only one button to adjust nozzle height manually and quickly anytime according to the sample liquid level. ● Input Pressure: 7-145psi; Output Pressure: 0-72.5psi. ● Clear Observation: front-end window with lighting helps observe the whole concentration process. ● Controlled by PID technology, temperature accuracy: ±0.5 °C. Water bath preheating is available. ● Water bath is equipped with intelligent drainage port, making water change convenient and efficient. ● Different concentration tubes are compatible: test tubes, centrifugal tubes, beakers, conical flasks, evaporation bottles, etc.. ● Acceptable sample tube size & volumes: Ø10-35mm, H32-200mm & V1-150ml. ● Classic disc-shaped structure with 360° rotating sample rack allows convenient operation. Specific mixed rack can be customized. ● Sample racks and nitrogen nozzles are made of 316 stainless steel as well as water bath is coated with PTFE for anti-corrosion and durability. ● 5" HD color touchscreen with real-time display of nitrogen pressure, water bath temperature and concentration time. Chinese and English are both supported. ● Manual Mode and Automatic Mode are optional. There will be an automatic alarm after the process is completed. ● Remote monitoring of concentration process is available in a mini program on Wechat, which also allows notification messages are received by users.
Configuration list:
1）MFV-24 Main System
2）24-pos sample rack
3）10ml Test Tube (16×100mm; 100pcs/pkg)
4）Dial Trim Valve
5）Ø1.5mm nitrogen nozzle, 10pcs/pkg
6） Ø2.0mm nitrogen nozzle, 10pcs/pkg
7） Water Bath Module
8） 5.0” HD Control Terminal
9） MFV-24 Control Software V1.0
10） Special Tool Kit
11） User Manual
