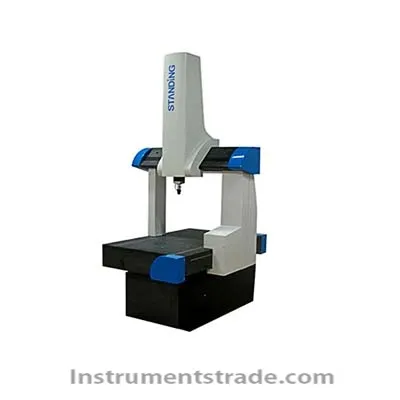

Brief introduction: Metic series fully automatic three-dimensional equipped with advanced numerical control system and measuring software of simple operation, powerful can efficiently various measurement task, on the premise of guarantee the economic and practical possess higher reliability and stability, and greatly reduce maintenance costs, in the late rich configuration and excellent performance, flexible application, become the high ratio of performance measurement system. Product description: 1. Bridge structure is adopted in three coordinates, with open work surface 2. One-piece dovetail guide rail has better stability 3. Large span air floatation spacing has stronger bearing capacity 4. Optimal dynamic performance and accuracy stability Application scope: 1. This automatic three-coordinate measuring machine is suitable for the measurement of most medium and small precision components 2. Process control, first piece test, final test and other measurement tasks applicable to the workshop 3. It can be configured with contact type, non-contact type, single point or scanning multiple probes to complete complex measurement tasks. Technical parameters:
X(mm)
Y(mm)
Z(mm)
300~800
500~1500
400~800
Accuracy (according to ISO10360-2 standard)
MPEE(um)
2.0+3L/1000~3.5+3L/1000
MPEP(um)
2.5~3.5
