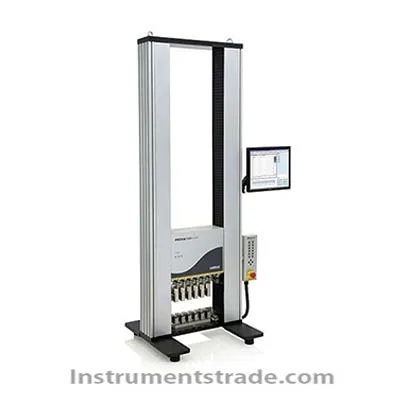

MEGA 1500 Auto Tensile Tester

Product ID:WSHll034

Price: Please inquire PDF Format
Supply Ability:10SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberMEGA 1500
    Brand NameJINANLANGUANGJIDIAN
    Payment TermsT/T, paypal
    MEGA 1500 Auto Tensile Tester
    Introduction
    MEGA 1500 Auto Tensile Tester is professionally designed for the determination of tensile strength, peel strength, tear strength, heat seal strength and adhesiveness of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, pressure sensitive tapes, medical patches, protective films, release paper, rubber and paper, etc.
    This instrument is equipped with more than 100 grips for tests of more than 1000 materials. And customization is also available for special material tests.
    This instrument conforms to multiple standards including: ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, JIS P8113, QB/T 2358, QB/T 1130
    Features
    Double-column ball screw driving mechanism ensures high precision and steady working of the instrument
    Multiple testing modes are available including tensile strength, deformation, peeling and tearing, etc. which can meet the testing demands of the customers
    Stress at defined elongation, elastic modulus and stress and strain etc. can be analyzed
    1200mm extra-long stroke satisfies the test needs of various materials with extreme deformation rate
    6 working stations and pneumatic specimen clamping facilitate to test multiple specimens simultaneously
    Load cells with different test ranges and stepless speed change from 1 to 500mm/min can meet the requirements for various testing conditions
    The embedded computer controller system, with membrane switch is convenient for instrument operation
    Multi-level over-travel protection, overload protect, automatic position reset and intelligent error alerts for safe test operation
    Embedded computer controlled system effectively guarantees the system security and the reliability of data management as well as test operation
    The instrument can be operated with one monitor, one mouse and one keyboard, not requiring a computer
    The system is equipped with four USB ports and two net connection interfaces, which is convenient to data expansion
    Professional operating software supports superposition analysis of test curves of group specimens and statistical analysis of maximum, minimum, average and standard deviation of test results
    Technical Specifications
    Specifications MEGA 1500
    Load Cell Capacity 500N (Standard) 50N, 100N, 250N, 1000N (Optional)
    Accuracy 1% FS
    Test Speed 1 ~ 500mm/min (Stepless Speed Change)
    Number of Stations 6
    Number of Specimens 1 ~ 6
    Specimen Width 25mm (Standard Sample Grip)
    Clamping Way Pneumatic Specimen Clamp
    Stroke 1200 mm
    Gas Supply Pressure 0.6MPa ~ 0.7MPa (Outside of Supply Scope)
    Port Size Φ6mm PU Tubing
    Instrument Dimension 850 mm (L) x 700 mm (W) x 2030 mm (H)
    Power Supply 220VAC 50Hz / 120VAC 60Hz
    Net Weight 168 kg

  • Introduction
    MEGA 1500 Auto Tensile Tester is professionally designed for the determination of tensile strength, peel strength, tear strength, heat seal strength and adhesiveness of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, pressure sensitive tapes, medical patches, protective films, release paper, rubber and paper, etc.
    This instrument is equipped with more than 100 grips for tests of more than 1000 materials. And customization is also available for special material tests.
    This instrument conforms to multiple standards including: ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, JIS P8113, QB/T 2358, QB/T 1130
