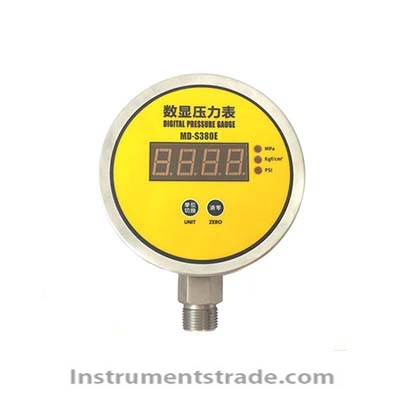

MD-S380E digital pressure gauge Introduction
The MD-S380E digital pressure gauge is a compact digital pressure gauge with an 80mm 304 stainless steel housing.
The MD-S380E is capable of displaying pressure in real time with multiple pressure unit switching.
It can measure media such as water, oil and gas. Can be used in heat pumps, pressure vessels, etc. In particular, instead of the pointer pressure gauge, it is used in high vibration and frequent pressure shocks.
The four LEDs are highlighted in red to visually display the pressure, and the axial and radial options are different. Features
Outer diameter 80mm stainless steel dial, case material 304 stainless steel
Full pressure range coverage (0-0.5...1...2...6...10...16...25...50...100...250...400. ..600Bar) or custom range
Optional 12V 24V or 220Vac 380Vac power supply
Three pressure (Mpa, PSI, Kg.F/cm2) unit switching
One-button clear error
304 stainless steel joint
It can measure water, oil, gas and other media that are non-corrosive to stainless steel. Technical Parameters
Pressure range: 0~-100KPa...1MPa 1.6MPa 5MPa 10MPa 25MPa 40MPa 60MPa or custom range
Installation interface: M20*1.5 G1/4 G1/2
Accuracy level: 0.5%
Display digits: 4-digit display
Size: diameter 80mm
Power supply: 12V 24V 220V 380V optional
Rated current: 20mA
Power: Less than or equal to 0.05W
Operating temperature: -20~80°C
Function: 1. Multiple pressure unit switching 2. One button clear
Introduction
The MD-S380E digital pressure gauge is a compact digital pressure gauge with an 80mm 304 stainless steel housing.
The MD-S380E is capable of displaying pressure in real time with multiple pressure unit switching.
It can measure media such as water, oil and gas. Can be used in heat pumps, pressure vessels, etc. In particular, instead of the pointer pressure gauge, it is used in high vibration and frequent pressure shocks.
The four LEDs are highlighted in red to visually display the pressure, and the axial and radial options are different.
