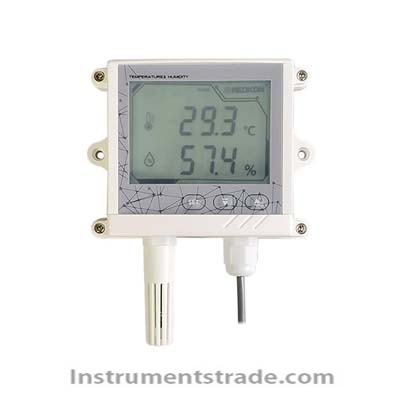

MD-HT wireless temperature and humidity meter Introduction
The MD-HT series of intelligent temperature and humidity products include a variety of products for different scenes. It can be equipped with a split probe or an integrated probe. The product is equipped with a mounting bracket for wall mounting.
This series of products includes 4-20mA current (HT-A), RS485 (HT-R) two wireless output solutions, equipped with LCD liquid crystal display, showing the current temperature and humidity values while data is transmitted remotely.
At the same time, the series of temperature and humidity products also include intelligent terminals of GPRS/LoRA/NB-iot wireless output, and the output protocol supports UDP/TCP/MQTT/CoAP protocol.
The product has high precision, good stability and long service life. The design and application scenarios are the occasions where the temperature and humidity need to be monitored in the pump room, machine room, factory building, exhibition hall and other exhibition halls.
Feature
☆ Optional GPRS/LoRA/NB-iot wireless output mode
☆ Optional split probe or integrated structure
☆ Provide customized development protocol messages and interfaces
☆ High precision, temperature is better than 0.2 °C, humidity is better than 3% RH
☆ Small size, wall hanging design, easy to install
☆ The frequency of sending can be set, the temperature and humidity alarm value can be set
Technical Parameters
Output signal: GPRS (MD-HT-G)
LORaWAN (MD-HT-L)
NB-iot (MD-HT-N)
Supply voltage: 9~28VDC
Measuring range (humidity): 0~100%RH
Measuring range (temperature): -40~+80°C
Humidity accuracy: ±3% RH (5~90% RH)
Temperature accuracy: ±0.2°C (25°C)
Resolution: Temperature (0.1 °C) Humidity (0.1% RH)
Long-term stability (temperature): <0.2 °C / year
Long-term stability (humidity): <0.5% RH/year
Installation method: wall-mounted
Response time: temperature (5s) humidity (8s) 1/e (63%)
Probe installation method: integrated / split type (separate cable length can be customized)
