Introduction

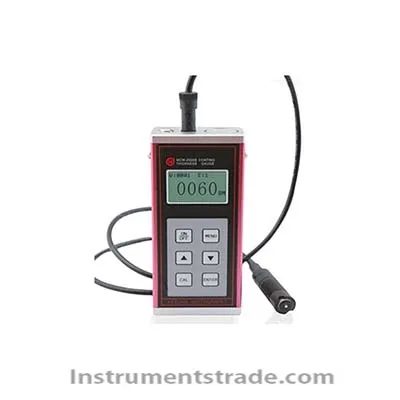

MC-2000D coating thickness gauge (coating thickness gauge) Measuring range: 10 ~ 9000um, it is the crystallization of high-tech, which uses SCM technology, high precision, digital display, indication stability, low power consumption, simple operation Convenient, touch keys, single-probe full-range measurement, small size, light weight; and with storage, read out, statistics, low-voltage instructions, system calibration, its performance to contemporary international advanced level of similar instruments.
Applications:
This instrument uses magnetic thickness measurement method, can be easily non-destructive measurement of ferromagnetic material on the thickness of non-magnetic coating, such as steel surface zinc, copper, chromium and other coatings or paint, enamel, glass, spray, asphalt coating thickness of. The coating thickness gauge is widely used in machinery, automobile, shipbuilding, petroleum, chemical, electroplating, spray, enamel, plastics and other industries.
working principle:
MC-2000D coating (plating) layer thickness measurement using electromagnetic induction coating (plating) layer thickness. The probe located on the surface of the part produces a closed magnetic circuit that changes in varying degrees as the distance between the probe and the ferromagnetic material changes causing the reluctance and inductance of the probe coil to change. With this principle can accurately measure the distance between the probe and ferromagnetic material, that is, coating (plating) layer thickness. Features
1, the measurement range: 10 ~ 9000um
2, the measurement error: <3% ± 1um
3, the minimum indication: 1um
4, Display: 4-digit LCD digital display
5, the main function:
(1). Measurement: single probe full-range thickness measurement
(2). Store, delete: can be stored in the measurement data 600, the measurement of a single suspicious data can be deleted, you can delete all the data in the storage area.
(3) .Read: Reads the measured data that has been stored
(4). Statistics: There are three statistics, the average maximum value of the minimum
(5). Calibration: can be system calibration
(6). Power: with under-voltage display
(7). Print: Printable measurement, optional micro-printer
(8). Shutdown: with automatic shutdown and manual shutdown two methods
6, power: two 1.5v battery
7, power consumption: maximum power consumption 100mw
8, shape to make inch: 51mm * 126mm * 27mm
9, Weight: 160g (with battery)
10, the use of ambient temperature: 0 ℃ ~ +40 ℃ Relative Humidity: not more than 90%
11, the minimum thickness of the substrate: 0.5mm
12, the minimum diameter of the substrate: 7mm
13, the minimum radius of curvature: convex: 1.5mm concave: 6mm
14, under voltage indication: the upper right corner shows ""
* The critical thickness of the small: the workpiece iron-based thickness of more than 1mm, the coating (plating) layer thickness measurement of iron-based thickness
Technical parameters
Model MC-2000D
Measuring Range 10-9000um
Measuring Accuracy 1um
Variation <3%±1um
Smallest Radius for measuring 6mm for concave
1.5mm for convex
Fundamental Material Diameter ≥7mm
Fundamental Material Thickness 0.5mm
Probe Info Separated probe with full range measuring ability. 3 different calibration modes
Stats Storage Ability 600 Stats
Poewer 2 pcs 1.5V batteries
Screen Auto backlight function
Operating Condition Humidity≤90% Temperature Range 0~40℃ Packing List and Selectable Accesorries
1pc MC-2000D Printer
2pc 1.5V Battery Detecting Toolbox
1set Calibration Samples USB Cable
1pc Manual Instruction
1pc Warranty Card
1pc Suitcase
