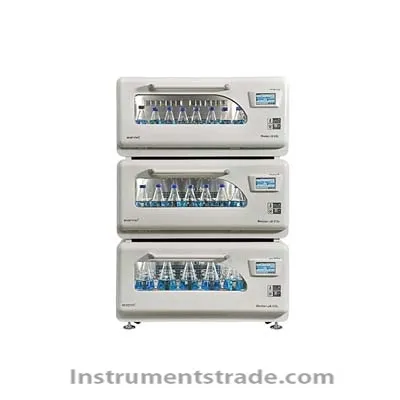

Master-JX 2023R Carbon Dioxide Constant Temperature Culture Oscillator

Product ID:SHGCpyx062

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberMaster-JX 2023R
    Brand NameSHANGHAISHIPING
    Payment TermsTT,PAYPAL
    Master-JX 2023R Carbon Dioxide Constant Temperature Culture Oscillator
    Introduction:
    Suitable for in vitro cultivation of cells and tissues, including mammalian cells, hybridoma cells, insect cells, plant cells, etc;
    Suitable for mild and stable oscillation conditions required for cell culture;
    Suitable for molecular biology, such as protein expression;
    Features:
    1. Perfect appearance
    2. Pull down box door
    3. All stainless steel chamber
    4. Intuitive touch panel
    5. Intuitive operation
    6. Accurate control and monitoring
    7. Double glazed doors
    8. Lighting lamp UV lamp
    9. Safe and stable operation
    10. No noise during operation
    11. Advanced refrigeration technology
    Technical parameters:
    1. Temperature control
    Temperature range: 4 -60 (ambient temperature -18 , minimum 4 )
    Temperature uniformity: ≤ ± 0.5 (at 37 )
    Temperature accuracy: ± 0.1
    Temperature recovery time: ≤ ± 10mins
    Environmental temperature range: 5-35
    Humidification method: natural humidification
    2. CO2 concentration control
    CO2 control range: 0-20%
    CO2 control accuracy: 0.1%
    CO2 stability: ± 0.1%
    CO2 accuracy: ± 0.3%
    CO2 sensor: Original imported infrared IR sensor
    Sterilization method: UV sterilization
    Concentration recovery time: ≤ 5mins, open the door for 30s
    3. Speed control
    Rotation frequency: 0-300rpm
    Rotation accuracy: ± 1rpm
    Swing amplitude: 25mm (optional 50mm)
    4. Technical specifications
    Volume: 282L
    External dimensions: 1410 * 830 * 660H (mm)
    Internal dimensions: 1030 x 595 x 460H (mm)
    Shaker size: 920 x 540 (mm)
    Maximum capacity: 250ml x 60 tubes or 500ml x 40 or 1000ml x 24 or 2000ml x 15 tubes or 5000ml x 7 tubes
    Number of shaking plates: one piece
    Heating power: 1300W
    Refrigeration power: 195W
    Motor power: 250W
    Lighting: 8W
    UV lamp: 8W
    Net weight: 431kg
    Maximum stacking: 3 units



  • Introduction:
    Suitable for in vitro cultivation of cells and tissues, including mammalian cells, hybridoma cells, insect cells, plant cells, etc;
    Suitable for mild and stable oscillation conditions required for cell culture;
    Suitable for molecular biology, such as protein expression;
