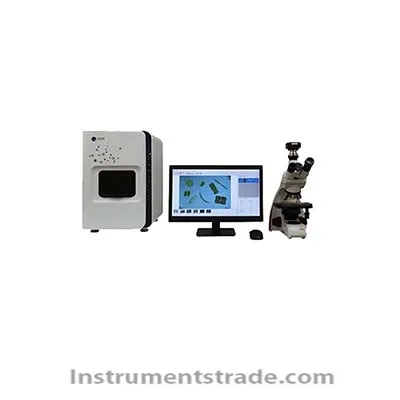

Introduction: MAS-H1 Bio-integrated Analysis Instrument combines three functions of colony counting analysis, phytoplankton identification and counting, and zooplankton identification and counting. It is specially designed for water quality analysis, ecological evaluation and environmental detection. device Features: 1. One-click statistics 2. Deep learning technology automatic comparison 3. Single image enlargement comparison 4. Algae / zooplankton information statistics table 5. Biomass calculation 6. Data Security and Management Technical Parameters: 1. Microscopic imaging device: 20 megapixel ultra clear CMOS camera Ø Data interface: USB3.0 Microscope interface Trinocular biological microscope 2, host imaging device 8.5 megapixel HD COMS camera 3 megapixel HD lens 3, software features 1 plankton module 1) Plankton image acquisition Camera connection, white balance, exposure time adjustment, 200 images can be selected in manual or automatic mode 3D depth of field fusion Super view stitching 2) Plankton database Chinese and Latin bilingual algae expert gallery (a total of 11 doors, 1569 genus, 13085 species), there are more than 168,179 effective algae libraries, each library species and content can be expanded In the gallery, separate toxic algae, red tide algae, shrub algae, common freshwater algae in China, and common marine algae in China Chinese and Latin bilingual display of zooplankton experts (a total of 10 major categories, 1239 genus, 4851 species), there are more than 73,928 effective zooplankton libraries, each library species and content can be expanded 3) Intelligent identification Automatic comparison identification using current advanced deep learning technology Single image magnification comparison Multi-population map comparison 4) Algae classification count Mark all kinds of microalgae with color circles of different colors and different sizes, click by category, and automatically count up Automatic sorting of dominant species, sorting by door (class), percentage analysis of dominant community composition Automatic calculation of Shannon-Werner index, uniformity index, automatic conversion of algae density, automatic conversion of zooplankton abundance Complementing the biomass of plankton by a large number of geometric models 5) Classification of zooplankton Mark all kinds of microalgae with color circles of different colors and different sizes, click by category, and automatically count up Automatic sorting of dominant species, sorting by door (class), percentage analysis of dominant community composition 6) Accessibility Single cell microalgae automatic counting It can measure algal population area, individual area of plankton, algae diameter, algal filament, flagella length and branching angle Historical count table memory function Any text and size can be recorded on the photograph of the algae cells that have been taken. 2 colony counting module 1) Classification one-click statistics: RIDATM one-button count Compact DryTM one-button counting Background similar bacteria one-button count Micro bacteria count one button Disperse bacteria one-button count One-click counting of adhesion bacteria Large colony count 2) Auxiliary statistical tools: Manual correction: add or delete missing colonies by mouse click Smart correction: intelligent correction based on one-click statistics Measuring tools: angle, line segment, area, curve Contamination of contaminating bacteria (impurities): removal of impurities according to color, diameter and roundness Single colony morphology analysis: Click on a single colony to know the roundness, diameter, perimeter, area and other information of this colony. All colony morphology: After counting, you can know the roundness, diameter, perimeter, area and other information of all colonies on the plate. Colony size classification: After counting, according to the size of each colony, it is displayed in 25 grades. Total number of sample colonies: automatic conversion based on actual culture vessel diameter and sample dilution 3 Data Security and Reporting Multi-user login system, each account forms independent data, and the data is saved for a long time. Statistical results are output in PDF format, raw data cannot be changed With audit trail function, the operator automatically records every step of the software on the software, so that the subsequent result data can be traced. Automatically save each batch of photos, statistical IDs, and statistics
