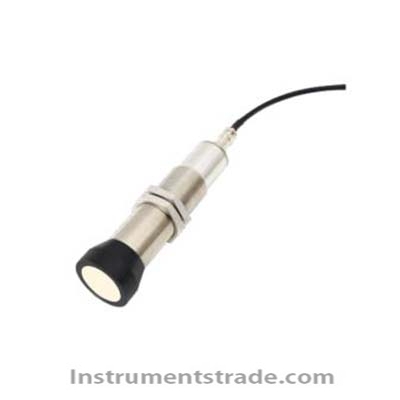

M30 Ultrasonic Distance Measuring Sensor Introduction: The housing of M30 ultrasonic ranging sensor is made of stainless steel, which can effectively avoid on-site magnetic field interference; LED signal indication; Aviation plug connector, easy to install. characteristic: 1. Fast response speed 2. Multiple output modes to choose from 3. Switch status indicator light and working status indicator light, yellow LED and green LED 4. RS485 communication is used as a configuration method, with readable data and adjustable switch output range 5. Short response time 6. Temperature compensation Technical parameters: Power supply: 10-30VDC Measurement range: 200-3500mm Measurement accuracy: ± 3cm Transformer frequency: 70kHz Repetition accuracy: ± 0.25% Accuracy: ± 0.5% Resolution: 1mm Launch angle: 7.2 ° Environmental temperature:- 20℃～60℃ Power on response delay:< 350ms Protection level: IP66 Wire length: 2m (other wire lengths need to be customized) Green power indicator light, yellow working indicator light Weight: Approximately 300g
