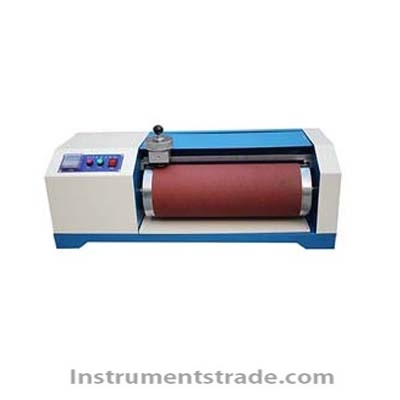

Introduction: This machine conforms to DIN-53516, ISO / DIS-4649, GB-9867 This machine is suitable for abrasion testing of elastic materials, rubber, tires, conveyor belts, conveyor belts, soles, soft synthetic leather, leather, etc. And easy to operate. Roller diameter φ150mm Roller length 460 mm Roller speed 40rpm Wear stroke 40 mm (20 mm) Wear speed 0.32 m / sec Inclination 3o Test piece diameter φ16 mm Thickness 6 ~ 15 mm Test load 5N ， 1 DIN Abrasion Tester This machine is suitable for abrasion testing of elastic materials, rubber, tires, conveyor belts, transmission belts, soles, soft synthetic leather, leather, etc., with high performance, good reproducibility and easy operation. Technical Parameters: Model: DIN Abrasion Tester Roller diameter: 150mm Lateral displacement of fixture: 4.2mm / rolling per revolution Load: 2.5N, 5N, 10N Speed: 40rpm Volume: 95 × 66 × 31cm Weight: about 50kg Power: 220V 50HZ
Introduction
This machine conforms to DIN-53516, ISO / DIS-4649, GB-9867 This machine is suitable for abrasion testing of elastic materials, rubber, tires, conveyor belts, conveyor belts, soles, soft synthetic leather, leather, etc. And easy to operate. Roller diameter φ150mm Roller length 460 mm Roller speed 40rpm Wear stroke 40 mm (20 mm) Wear speed 0.32 m / sec Inclination 3o Test piece diameter φ16 mm Thickness 6 ~ 15 mm Test load 5N
