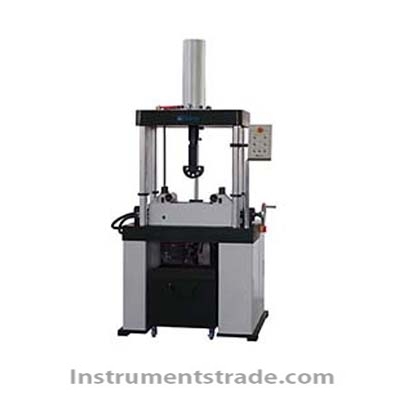

Brief introduction: Steel cold bending machine is specially used for metal materials: bar, plate, building rebar bending test. The machine adopts double oil cylinder hydraulic load, by hand wheel to drive the bidirectional screw make press bending roll synchronization and to adjust the cold bending roll distance. Plug in cold bending roller replacement is convenient. This machine has the function is perfect, the operation is simple, compact structure, cover an area of an area small, safe operation and reliable in use, etc. Products meet the GB/T232-1999 "metal material bending test method". Features: 1. This machine is making a test when a ° bend forming; 2. One operator, inching button to complete the test; 3. The sample try directly into the closed space, safe operation; 4. Unique dustproof device, protect the screw from the sample scale intrusion; 5. Double oil cylinder loading, loading, unloading fast back; 6. Sample configuration waste recycling car operating worry; 7. Cover an area of an area small, save test area. Technical indicators: Product model: LWS - 200 Maximum force test: 200 kn Master cylinder work schedule: 390 mm Bar specimen diameter: from 6 mm to 40 mm Plate specimen thickness: 6 mm to 25 mm Plate specimen width: 50 mm Maximum bending Angle: 180 ° Bend heart diameter series: 2.75-192 (mm), and other 55, users according to the need to place an order Power: 2.2 kW/AC380V / 50 hz Host appearance size: 890 mm * 860 mm * 1970 mm Weight: 1000 kg
Brief introduction: Steel cold bending machine is specially used for metal materials: bar, plate, building rebar bending test. The machine adopts double oil cylinder hydraulic load, by hand wheel to drive the bidirectional screw make press bending roll synchronization and to adjust the cold bending roll distance. Plug in cold bending roller replacement is convenient. This machine has the function is perfect, the operation is simple, compact structure, cover an area of an area small, safe operation and reliable in use, etc.
