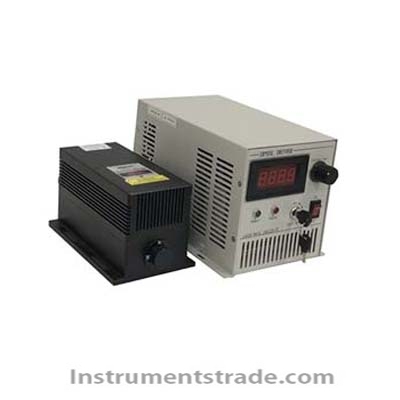

LWGL545nm (0-1W) laser Introduction: LWGL545nm (0-1W) laser is used for: Raman spectroscopy, spectral analysis, spectral calibration, fluorescence excitation, low light level inspection, PIV, laser measurement and detection, laser color printing, laser detection, laser medicine, scientific experiment, collimation, optical instruments, confocal microscope, etc characteristic: 1. High stability and reliability 2. Good spot quality 3. Electrostatic, over-current and over temperature protection to ensure the service life of the laser 4. Fully tested by different global environments, with a service life of 10000 hours Technical parameters: Model: LWGL545-1000mW Wavelength (nm): 545 Output power (mW): 10100... 1000 Power adjust (mW): 0-Pmax Transverse mode: Near TEM00 Operating mode: CW, TTL, Analog Power stability (rms, over 4 hours):<3%,<5% M2 factor:<6 Beam divergence, full angle (mrad):<2 Beam waist (mm) waist diameter:<1.2 Spectral line width (nm):<0.1 Polarization ratio: 100:1 Point stability after warm up (mrad) Operating temperature (℃): 0-40 Warm up time (minutes):<10 TTL modulation TTL modulation frequency: 30KHZ Analog modulation frequency: 30KHZ (0~max output when 0-5V signal input) Expected life time: 10000 Warranty time: 1 year
Introduction: LWGL545nm (0-1W) laser is used for: Raman spectroscopy, spectral analysis, spectral calibration, fluorescence excitation, low light level inspection, PIV, laser measurement and detection, laser color printing, laser detection, laser medicine, scientific experiment, collimation, optical instruments, confocal microscope, etc
