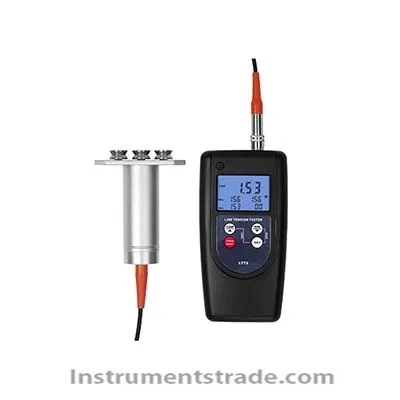

LTTS digital wire tension meter Introduction: LTTS digital wire tension meter is a handheld device used to accurately measure the tension of various process materials (including yarn, fiber, wire, and optical fiber) in operation or at rest. Features: 1. It adopts the "three-wheel tension measurement principle". 2. High precision and high resolution. Digital display, no parallax. 3. Powered by 4 AAA batteries. 4. Four measurement units of N (Newton), kg (kg), lb (lb), and g (gram) are available for selection and mutual conversion. 5. Display the current value, maximum value, peak value, and minimum value during the measurement period. 6. It can be set to shut down automatically without operation for 10 minutes; it can also be shut down manually. 7. Perform 62 measurements per second, and display the average value of the measurement according to the time interval selected by the user. 8. Optional USB data line output, Bluetooth data output, communication with PC. Technical parameter: Unit: kgf, gf, N, Lbf Measuring principle: strain gauge Measurement frequency: 16 milliseconds (62.5 samples/sec) Sensor wheel offset: 0.2 mm Overload capacity: 150% of full scale Temperature coefficient: zero point: less than ±0.3% FS/°C Within the range: less than ±0.01% FS/°C Display: Blue backlit LCD Display update rate: 0.5, 1.0, 2.0 or 4.0 seconds display conversion optional Measurable values: current value, maximum value, peak value, minimum value Over-range indication: buzzer indication Shutdown mode: 10 minutes automatic shutdown or manual shutdown Data output: USB, Bluetooth (optional) Roller material: stainless steel (standard) Plastic (optional) Measuring speed: 2000 m/min Power supply: 4 AAA batteries Working temperature: 0 ~ 40°C Working humidity: <80% Net weight: 400 g Dimensions: Host: 149 x 70 x 30 mm Sensor: 102 x 81 x 34 mm
Introduction: LTTS digital wire tension meter is a handheld device used to accurately measure the tension of various process materials (including yarn, fiber, wire, and optical fiber) in operation or at rest.
