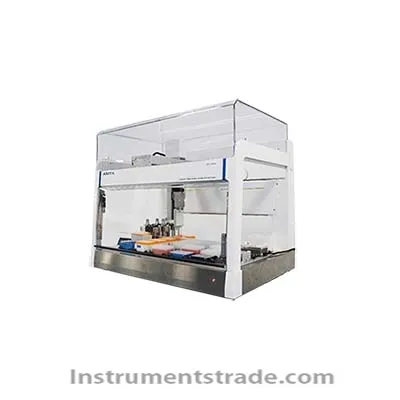

Introduction: LH-1808 is based on the direct sample loading of blood collection tubes or sample tubes, realizing the full automatic liquid processing flow from tube to plate and plate to plate. Combined with a single/4/8/16/32 channel pipette head, and the pipetting volume range is 0.5-1000µL, it can flexibly handle different sample numbers and different application scenarios, realizing a fully automated process for qPCR fluorescence detection pre-processing . The workstation can integrate scan code module, liquid detection module, heating and cooling module, oscillation module, blood separation turntable module, magnetic separation module, etc. Features: 1. Large table top, a wide range of application scenarios 30 standard board positions, different functional module combinations to meet different application requirements Satisfy the operations of original tube sample loading, tube transfer plate, high-throughput sample screening, etc., reduce the number of table layouts, and have a higher degree of automation 2. Accurate and reliable pipetting, trustworthy The software has a variety of liquid suction and discharge methods built in, and the controllable suction and discharge speed can meet various application scenarios Adjust the Liquid Class value according to the viscosity of different liquids to achieve precise suction and discharge volume Pipetting precision: 1µL CV ≤5% 3. Abundant pipetting head group library, automatic switching, easy operation According to different pipetting volume and sample throughput, single-channel, 4-channel, 8-channel, 16-channel, and 32-channel pipetting heads can be selected, and the pipetting range is 0.5μL-1mL The pipetting head and gripper adopt a unified head structure, which is controlled by software and precisely positioned to realize automatic loading and unloading of the robotic arm Technical parameter: Dimensions (length×width×height): 110cm×80cm×90cm Weight: about 150 Kg Number of boards: 30 Power supply voltage and power: AC220V, 50Hz, 450W/525W Single tube automatic code scanning time: ＜2.3s Liquid level detection error: ＜±0.5mm Pipette head Number of channels: single, 4, 8, 16, 32 channels Pipetting range: 0.5μL -1000μL Adaptation Tips: 50μL, 250μL, 1000μL Temperature control module Temperature range: 4-75℃ Oscillation module Vibration speed range: 100-2000 rpm Heating oscillation module Temperature and vibration speed range: room temperature~100℃, 200-2000rpm Triple temperature control module Upper plate of heating box: room temperature~110℃(±1℃) lower plate: room temperature~70℃(±1℃) Refrigeration box: Lower plate: 6℃~room temperature (±4℃) Room temperature box: room temperature Applicable consumables: deep well plates, 96/384 well PCR plates Blood separation turntable module Suitable blood collection tube volume: 5mL, 10mL Maximum number of samples/batch: 24 Scan code: one-dimensional code, two-dimensional code Fully automatic PCR module Temperature range: 4℃～99℃ Cover temperature: 30℃～115℃ Temperature uniformity: ±0.2K Applicable consumables: 96/384-well PCR plate
Introduction: LH-1808 is based on the direct sample loading of blood collection tubes or sample tubes, realizing the full automatic liquid processing flow from tube to plate and plate to plate. Combined with a single/4/8/16/32 channel pipette head, and the pipetting volume range is 0.5-1000µL, it can flexibly handle different sample numbers and different application scenarios, realizing a fully automated process for qPCR fluorescence detection pre-processing . The workstation can integrate scan code module, liquid detection module, heating and cooling module, oscillation module, blood separation turntable module, magnetic separation module, etc.
