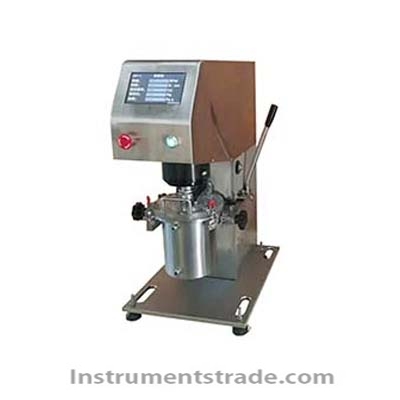

Introduction: LBY-1 multifunctional concrete rheometer is a widely used (slurry, ink, colloid, resin, polymer, stucco cement, concrete, etc.), computer-controlled rheology measurement equipment for industry, which can measure Viscosity Newtonian fluids, to colloids, to high-concentration pastes, can automatically complete control, data acquisition, analysis and processing with the support of relevant software packages to obtain material flow curves Features: 1. When measuring fluids and slurries with large variables, it has a wide range of shear rates and can provide the best sensitivity test performance 2. Dynamic range 0.01-1000Ncm, high sensitivity torque 3. Containers and impellers to meet customer-specific requirements 4. The drive control system can be programmed according to special application requirements 5. Speed of impeller 0.001rpm-250rpm 6. Fully automatic control of the instrument through RS232 interface and computer connection Technical parameter: Impeller speed: 0.01-250rpm logarithmic curve Stirring blade speed: 0-30rpm Torque range: 0.01-1000Ncm Standard container: double envelope, stainless steel Impeller: stainless steel double paddle Power requirements: 220V
