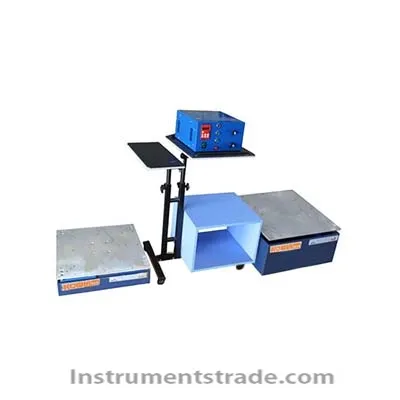

Technical Parameters: Model: KW-ZD-50CS Three-axis [Y+(X+Z) Axis, Vertical+Horizontal] (0.5~600Hz) Electromagnetic Vibrator Shaker with frequency division: 0.5~600HZ Shaker Control Mode: Full-function Standard Control Vibration direction: Three axes [2 table bodies, vertical (up/down/Y axis) + level (left or right or front/back/Z+X axis)] Vibration method: three axes [control box + 2 table bodies (vertical (up/down/y-axis) + horizontal (left/right or front/back/Z+X axis)] Vibration waveform: Three axes [Vertical (Y. Up/down) + Horizontal: (X/Z axis) OR (front/back/left/right)] Sine wave - Selectable (half or full wave) Vibration frequency: 0.5~600 Hz can be set arbitrarily (±0.1%) Maximum test load (kg): Not specified for 100kg Vibration table size H: (6-10) mm Platform (H/H): Vertical: 50*16*50CM Water Platform: 50*25*50CM Table: 500*6*500mm Platform: 500*500mm Amplitude: (any adjustable range mmp-p): 0-5.2mm (no collision condition) The maximum acceleration can be adjusted arbitrarily: 0~22g (220m/s2) Maximum sine wave excitation force (thrust force F): 2200kgf (F = weight * acceleration) Time control: any time can be set (seconds): 0~65500 seconds (about 18 hours) The worst case power supply voltage (V): 220±20%/(50/60Hz) 1 electronic leakage device Under the most severe conditions current: 10 (A) Vibration machine power: 2.2 KW (max.) Noise: Within 60dB of 5m, it is the sound of human ears Electromagnetic field radiation: 1 normal within 20-50 milligauss and 2 up to 100 milligauss (1 meter) 3 vibration table made of non-vibration motor Measuring instrument (test 20mm): Optional
Electromagnetic vibration tables are widely used in defense, aviation, aerospace, communications, electronics, automotive, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, wide application range, and remarkable and reliable test results.
Electromagnetic high-frequency vibration test bench troubleshooting method
Fault 1: The power switch light is not lit
Solution: 1. Check the external incoming power supply voltage for output input to the power socket, and use a multimeter to measure the voltage normal. 2. Check the control box power socket fuse for burnout and switch, replace the fuse or switch.
Fault 2: No control on the boot control panel
Solution: 1. Check whether the control panel switch is damaged or not. Check whether the power supply voltage has 220V input and the line is not connected. 2. The controller and the panel are connected to the communication signal line for poor contact or falling off, and can be pressed or connected.
Fault three: the run light is on without vibration
Solution: 1. Check if the function switch is turned ON. If not, press ON or the vibration is small. 2. Check if the vertical/horizontal direction of the three-axis switch is correct. Press the vertical/horizontal switch. 3. Is the CD003 and CD005 adjusted correctly or the adjustment too small? Reset CD003 and CD005.
Fault four: frequent fuses
Solution: 1. The power supply voltage of the XYZ high-frequency vibration test bench is not normal. Check whether the external incoming line voltage is short-circuited. 2. If the fine-tuning amplitude modulation function is adjusted to be large before starting, it should be adjusted to 0 and then slowly adjusted. 3. Whether the machine is working for a long time without load, causing the machine to be over-current short-circuit protected. 4, using a multimeter to measure the vertical body 1, 2 feet or level 3, 4 feet, the resistance value of the two points is normal within 1-200 ohms, abnormal is the central axis is bad, first determine whether the line connecting the central axis is short-circuited . 5, the control box power supply short circuit, check whether the line is off or burned.
