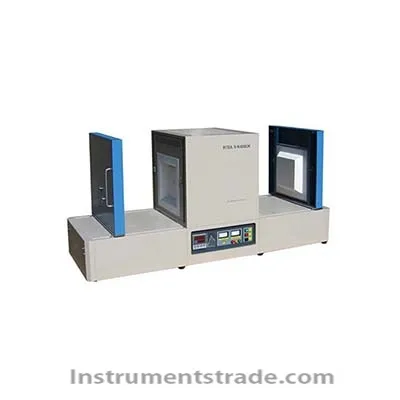

Introduction: The rail box furnace KSL-1400X uses silicon carbide rods as heating elements, thyristor, 708P intelligent temperature regulator and S-type single platinum crucible thermocouple to be used together, thereby performing temperature adjustment and automatic control of the internal temperature of the furnace. The maximum temperature of the furnace is 1300°C. Use two rails to open the door for ease of use. Features: 1. Silicon carbon rod heating; 2. 30-step temperature control; 3. S type single platinum crucible thermocouple temperature measurement; 4. Open the door on both sides of the track. Technical Parameters Furnace effective size: 250 mm×250 mm×300mm Working temperature: ≤1300°C Maximum temperature: 1400°C Temperature Control Mode: Intelligent 30-segment Programmable Control The fastest heating rate: 10°C/min Constant temperature accuracy: ±1°C Furnace structure: open on both sides Working power: AC220V /50HZ Rated power: 5KW Size: 1800 mm×600 mm×840mm Weight: 120kg Standard accessories: Block 2 blocks Tile 1 Thermocouple 1 Loss prevention heating original 2 Pliers 1 High temperature gloves 1 pair
Introduction: The rail box furnace KSL-1400X uses silicon carbide rods as heating elements, thyristor, 708P intelligent temperature regulator and S-type single platinum crucible thermocouple to be used together, thereby performing temperature adjustment and automatic control of the internal temperature of the furnace. The maximum temperature of the furnace is 1300°C. Use two rails to open the door for ease of use.
