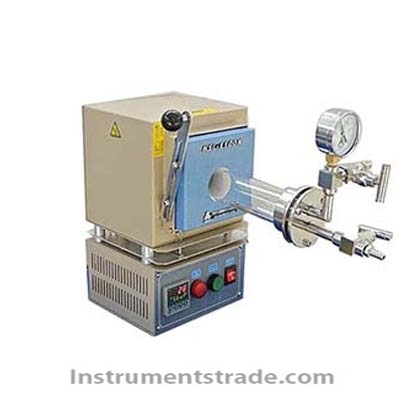

Introduction: The KSL-1100X-S-H is a CE-certified, small-mixed-tube/box furnace with a furnace size of 100x100x100mm. The simple chamber furnace heats the sample in air. This unit is equipped with a quartz furnace tube and a stainless steel sealing flange for heat treatment of samples under vacuum or atmosphere protection. The maximum temperature of the equipment can reach 1100°C, and the power is only 500-700W. In addition, the device is small in size and can be put into the glove box for operation. Features: 1. High-purity alumina fiber is used as furnace material, and the surface is coated with high-temperature alumina coating, which can improve the heating efficiency and ensure the temperature uniformity. 3. Pull down the door (with door open power function) 4. Mixing tube/box furnace: equipped with quartz furnace tube and stainless steel sealing flange, equipped with alumina plug, when you simply use the box furnace, you can plug the hole of the wall 5. Equipped with a digital vacuum gauge for measuring the degree of vacuum in the furnace tube 6. Portable Digital Thermometer with USB and RS232 Interface, NIST Certified Technical Parameters: Cavity size: 100x100x100 mm Voltage 220V, Single phase 50/60Hz Working temperature: 1000°C (continuous working temperature), 1100°C (working time <1 hour) Maximum heating rate: 20°C/min Temperature control system: PID adjustment of temperature with self-tuning function, can set up 30 sections of heating and cooling procedures; with over-temperature and burnout protection Temperature control accuracy: +/- 1°C Thermocouple: Type K Heating element: molybdenum-doped iron chromium aluminum alloy Product dimensions: 200 x 230 x 360 mm, Net weight: ~ 8Kg
Introduction: The KSL-1100X-S-H is a CE-certified, small-mixed-tube/box furnace with a furnace size of 100x100x100mm. The simple chamber furnace heats the sample in air. This unit is equipped with a quartz furnace tube and a stainless steel sealing flange for heat treatment of samples under vacuum or atmosphere protection. The maximum temperature of the equipment can reach 1100°C, and the power is only 500-700W. In addition, the device is small in size and can be put into the glove box for operation.
