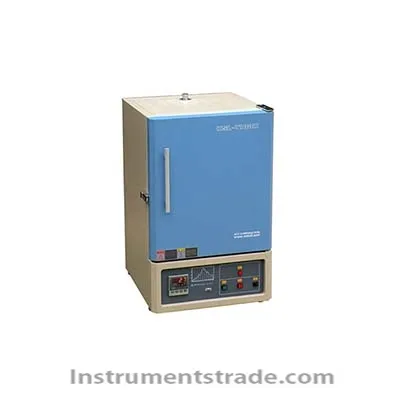

KSL-1100X-L 1100°C Large Box Type Furnace (64L) Introduction:
1100 °C large box furnace (64L) KSL-1100X-L using imported resistance wire as the heating element, the maximum temperature can reach 1100 °C, can work continuously at 1000 °C. This machine has the advantages of small size, light weight, balanced temperature field, rapid temperature rate, energy saving, etc. It is an ideal equipment for high-temperature sintering, metal annealing and quality inspection in universities, research institutes and industrial and mining enterprises. Features
1, double shell, with air cooling system.
2. The use of high-purity alumina polycrystalline fiber materials can minimize the loss of energy.
3. The surface of the inner furnace is coated with the alumina coating imported from the United States, which can increase the reflectivity and heating efficiency and prolong the service life.
4, using PID controller, you can set 30 paragraphs of temperature and humidity procedures, with over-temperature protection.
5, has passed CE certification. Technical Parameters
Power Supply: AC208V-240V 24A 5KW
Furnace: 400mm×400mm×400mm
Heating element: imported resistance wire (heated on three sides of furnace)
Working temperature: up to 1100°C(<1h), continuous working 100°C-1000°C
Maximum heating and cooling rate: 20°C/min (when installing the door)
Temperature control accuracy: ±1°C
Temperature field uniformity: ±3.45°C
Instrument stability: ±1°C
Size: 600mm×600mm×750mm
Weight: 125kg
Optional accessories
1, high temperature furnace temperature control software
2, 1/4" air inlet (installed on the back of the furnace as required)
3, aluminum oxide
4, quartz crucible
