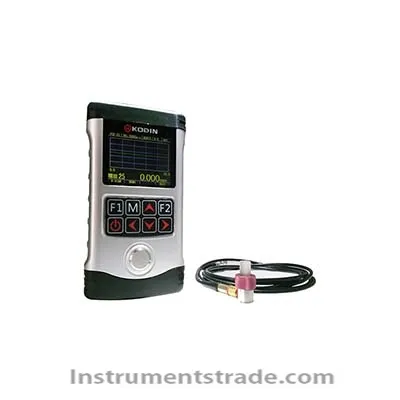

KODIN3000HM Single Crystal Ultrasonic Thickness Gauge
Introduction: KODIN3000HM is a high-precision intelligent ultrasonic thickness gauge. It adopts a new high-speed data acquisition technology and integrates functions such as A-scan, B-scan, numerical mode, and USB communication. The instrument is easy to operate, using a 2.4-inch high-definition TFT color screen to make the measurement interface clearer, and USB communication to make data transmission more convenient. It is suitable for thickness measurement of thin-walled materials such as automobile body steel plates, fire/security doors, copper doors/panel doors, fire extinguishers, office roll cabinets, metal stair handrails, stove supplies, etc. Technical parameter: 1. Measuring range Pulse-echo method: 1.2mm-26mm Echo-echo method: 0.2mm-13mm Multiple wave inspection method: 0.2mm-9mm Auto mode: 0.2mm-26mm 2. Measurement resolution: 0.001 or 0.01 or 0.1 3. Material sound speed range: 1000-9999m/s 4. Temperature: -10C - 60C; relative humidity less than 90% 5. Size: 146mm*81mm*30mm 6. Weight: 300g (including battery) 7. Unit: mm or inch 8. Power supply: two AA batteries 9. Display screen: 2.4TFT color display (320x240)
Introduction: KODIN3000HM is a high-precision intelligent ultrasonic thickness gauge. It adopts a new high-speed data acquisition technology and integrates functions such as A-scan, B-scan, numerical mode, and USB communication. The instrument is easy to operate, using a 2.4-inch high-definition TFT color screen to make the measurement interface clearer, and USB communication to make data transmission more convenient. It is suitable for thickness measurement of thin-walled materials such as automobile body steel plates, fire/security doors, copper doors/panel doors, fire extinguishers, office roll cabinets, metal stair handrails, stove supplies, etc.
