Brief introduction:

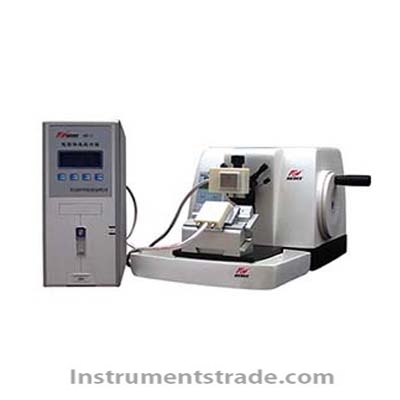

Cody KD - 3358 - Ⅵ (Ⅲ) computer fast frozen paraffin amphibious slicer by KD - 3358 computer slicer and KD - Ⅵ (Ⅲ) quick freezing system of two parts. The refrigeration system adopting the high-power semiconductor thermoelectric refrigeration principle and advanced nanometer material and intelligent, liquid crystal display (LCD) has set temperature, temperature, automatic constant temperature control, automatic protection system (alarm), automatic cream. There are automatic memory, automatic slicing return, automatic chip count, rapid retouching function; Specimen holder rapidly swap, the handwheel can be locked in any position, stable performance, high work efficiency. Reliable temperature regulation, the slice effect is greatly improved, is an ideal product to biological histology and clinical pathology. Features:
1. This machine adopts streamline design, advanced function, stable performance, reliable and easy to use
2. Drive feed system intelligent process control, the machine for half ultra-thin slicing machine, slicing since 0.25 microns
3. The drive of feed system for smart program control, slice with high precision
4. Advanced imported drive system, has the retouching, slice, fast forward, fast rewind, transformation function
5. Liquid crystal display (LCD) biopsy and retouching thickness, counting
6. Slice and blunders are completed by control system Technical parameters:
Slice thickness range: 0.25 ~ 60 microns
Dr Thickness range: 0.25 ~ 60 microns
Samples of horizontal displacement: 28 mm
Sample vertical displacement: 60 mm
Slice adjusting minimum degree value: 0.25 microns
Paraffin section of the biggest area: 50 x 50 mm
Slicing accuracy: plus or minus 1%
Preset temperature: room temperature ~ 55 ℃
The maximum temperature freezing machine: 60 ℃ or higher
The maximum temperature difference between cold knife device: 50 ℃ or higher
Frozen stage the most widespread: 45 x 40 mm
Power supply voltage: AC 220 v + 10% for 50 hz (standard); AC110V plus or minus 10% 60 hz
Power: 150 va (KD - 3358), 3358 va (KD - VI, Ⅲ)
The whole machine size: 520 x430x330mm
The weight: 24 kg
