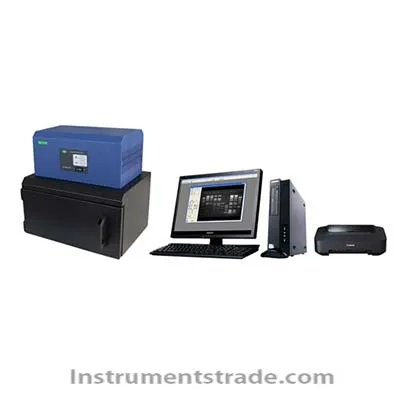

JY-Clear ECL Chemiluminescence Gel Imaging Analysis System

Product ID:SHCXnjcx047

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJY-Clear ECL
    Brand NameJUNYIDONGFANG
    Payment TermsT/T, paypal
    JY-Clear ECL Chemiluminescence Gel Imaging Analysis System

    Features:
    1. Small size and light weight, saving laboratory space to a large extent;
    2. Real-time observation of chemiluminescence images can be carried out through the computer;
    3. The user can control whether the CCD is cooled or not, and the automatic delay protection function;
    4. Shooting function with multiple modes:
      Single frame mode;
      Multi-frame mode;
      Automatic mode
    5. With the function of exposure evaluation;
    6. The best picture screening function;
    7. The object is less than 20cm away from the lens;
    8. Optional brand computer and printer.
    Technical specifications
    Camera: high-resolution and low-light cooling CCD (SONY ICX 285 imported CCD chip)
    Cooling method: semiconductor refrigeration
    Cooling temperature: -45
    Effective pixels: 1360×1024
    Pixel density: 16bit
    Pixel size: 6.45×6.45 (μm)
    Pixel combination: 1×1, 2×2, 3×3, 4×4
    Resolution: 1.4 million pixels
    Dynamic range:> 4 orders of magnitude
    Motorized lens: F/0.95, large-diameter and high-transparent motorized lens
    Lighting mode: reflected white light
    Excitation light source: LED reflective white light
    Shooting area: 180×180 (mm)
    Dimensions (L×W×H): 405×295×400 (mm)
    Net weight: 14.5 (kg)
  • Features:
    1. Small size and light weight, saving laboratory space to a large extent;
    2. Real-time observation of chemiluminescence images can be carried out through the computer;
    3. The user can control whether the CCD is cooled or not, and the automatic delay protection function;
    4. Shooting function with multiple modes:
      Single frame mode;
      Multi-frame mode;
      Automatic mode
    5. With the function of exposure evaluation;
    6. The best picture screening function;
    7. The object is less than 20cm away from the lens;
    8. Optional brand computer and printer.
