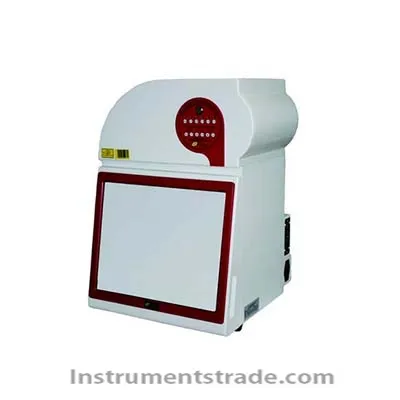

Introduction JS-1080 Fluorescent&Chemiluminescence Gel Imaging System is all-in-one machine and it supports plug and play function. It applies to chemiluminescence, multi-color fluorescence detection. Peiqing JS-1080Mini can capture razor-thin fluorescent light and fluorescent light by means of high resolution and low light-level CCD which combines large aperture and motorized zoom lenses. Deep cooling CCD can remove background noise to the most degree. Large aperture and motorized zoom can capture weak light furthest. Optional various fluorescent light sources and electric filter wheel satisfy experimental demand for nucleic acid imaging and ECL imaging. Features It can acquire the chemiluminescence experimental result rapidly by means of motorized zoom lens (F/0.95) and high sensitivity cooling CCD. It helps experimenter to avoid traditional way of darkroom exposure.
Integration design for chemiluminescence, multi-color fluorescence detection. Improve the experimental efficiency.
Observe chemiluminescence image in real time. Support auto-exposure, one-touch capture image of western blot.
Support one-touch auto-overlap marker image and chemiluminescence image, and generate three kinds of chemiluminescence images. Optional high brightness red, green and blue reflex excitation LED light source, in order to capture image for Cy2, Cy3 and Cy5.
Support to set the number of sample, start and end of exposure time, also support to multi-capture in order to access to the best performance. APPLICATION Blotting membrane: Chemiluminescent, ECL, ECL plus, CDP Star, SuperSignal, CSPD, LumiGlo, Cy2, Cy3, Cy5, FITC, Alexa Dyes, DyLight Dyes, ProQ Diamond, ProQ Emerald 300, ProQ Emerald 488, IR Dye 680, etc. Other application scenarios: kinds of hybond membrane, protein transfer film, colony count, ELISA PLATE, dot bloting, protein chips, TLC plate. SPECIFICATIONS Cooling CCD: high resolution, low illumination level, made in USA (chip: Sony ICX694)
Cooling function: semiconductor refrigeration
Cooling temperature: below 65℃ (absolute temperature -45℃, and CCD temperature shows in panel in real time)
Pixel: 2750 x 2200(6.05 M)
Bin: 1x1, 2x2, 3x3, 4x4
Lens: F/0.95, 4/3 inches motorized zoom lens, support AF.
A/D Conver: 16 bit(0-65535)
Pixel size: 4.54 x 4.54 um
Dynamic range: > 4 Zoom: drawer-style AF platform with two layers, compatible with various thicknesses samples
Capture: Support one-touch auto-overlap marker image and chemiluminescence image, and generate three kinds of chemiluminescence images.
One click shooting: Support auto-exposure, one-touch capture image of western blot.
Secondary light source: white light source(luminescence), and computer can adjust the brightness
Filter position: computer automatically control the position for 6 filters
Timing shutdown: 0-60 minutes
Shooting area: UV: 18x18cm white light: 16x16cm
Enterprise certification: “Shanghai high and new tech enterprises”, third prize in “Shanghai science and technology awards”
Dimension: 39 x 35 x 59 CM
Software: SensiAnsys, professional image collection and analysis system
