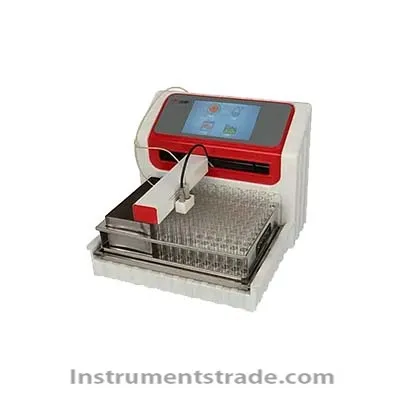

Introduction: The fraction collector model JP- blupad FC is one of the basic equipment for biochemical experiments and biopharmaceutical production. It is used to automatically and quantitatively collect the droplets flowing out of the chromatography column to achieve the purpose of loading different active components into different test tubes. . Features: 1. The parameters, the first tube and the end tube can be set arbitrarily; 2. Use 7-inch capacitive LCD touch screen display and control; 3. It can be collected according to time, number of drops, peak value, and program control (independent use); 4. Run the Blupad 1.0 control software online to collect by volume and threshold; (Online use) 5. Corrosion resistance design: suitable for column chromatography separation experiments of water-soluble solvents and organic solvents. 6. The 65° oblique angle control panel design is ergonomic and can be easily controlled without having to bend over. 7. Adopt square design and suspended X-Y movement mode, accurate positioning of tube replacement; Technical parameter: Display mode: LCD Chinese blue screen display Collecting test tubes: 100 tubes each with a capacity of 12ml (standard), 16 tubes each with a capacity of 100ml (optional), 36 tubes each with a capacity of 50ml (optional), 169 tubes each with a capacity of 5ml (optional) Timing range: 1 second-999 hours, 59 minutes and 59 seconds, any choice Constant titration range: 1 drop-9999 drops, any choice Fixed peak range 1-200mv arbitrarily selected Programmable control range 1-10 section arbitrary selection Movement method: suspended X-Y movement Tube change control: 12V DC solenoid valve Mode of operation: full Chinese menu Number of programs: 1-10/pattern Display mode: Chinese liquid crystal large blue film LCD display Test tube rack: square design with waste liquid tank, free combination, optional Power-off data storage: ten years Continuous working time: more than 200 hours
Introduction: The fraction collector model JP- blupad FC is one of the basic equipment for biochemical experiments and biopharmaceutical production. It is used to automatically and quantitatively collect the droplets flowing out of the chromatography column to achieve the purpose of loading different active components into different test tubes.
