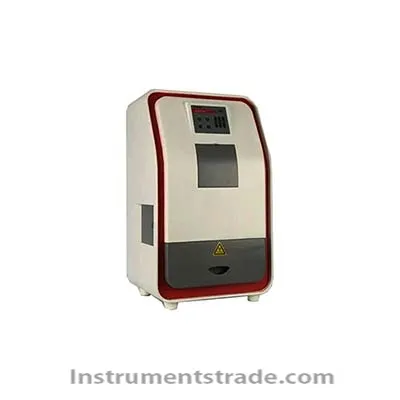

JP-2880 automatic gel imaging analysis system for Bioengineering Research

Product ID:SHCXnjcx051

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJP-2880
    Brand NameSHANGHAIJIAPENG
    Payment TermsTT,PAYPAL
    JP-2880 automatic gel imaging analysis system

    Introduction:
    JP-2880 automatic gel imaging analysis system can be used for DNA/RNA gels, protein gels, blot hybrid membranes (including Western, Southern, Northern, Solt, dot hybrid membranes), autoradiography films, enzyme-labeled plates, thin The imaging and analysis processing of images such as layer tomography plates can perform ground total analysis, molecular weight analysis, cluster analysis, homology analysis, etc. of bands, spots and any other target areas.
    Features:
    1. Multi-function control panel, touch buttons, simple and convenient function selection
    2. Fully automatic control of lens zoom, focus, aperture, transmission UV lamp and reflector lamp can be carried out through software or chassis panel;
    3. Motorized lens: professional zoom lens, which can easily adjust parameters such as aperture, zoom and focus
    4. Overhead white light source: uniformity enhances low-brightness images
    5. Anti-UV observation window: you can observe the condition of the sample without opening the dark box door
    6. Glue cutting port: Glue can be easily cut and recycled without opening the dark box door
    7. Closed dark box: the dark box is designed for gel imaging conditions
    8. Timing protection function: without inputting any command within 10 minutes, all light sources are automatically turned off, prolonging the service life
    9. Double-side reflection: dual-wavelength ultraviolet light source 254, 365nm
    10. A variety of accessories are available: ultraviolet white light conversion screen, ultraviolet/blue light conversion screen, multi-wavelength transillumination table, etc.
    Technical parameter:
    CCD chip: 2592(H)×1944(V), 5 million pixels
    Dynamic range: 4.5OD.16bit gray scale, lower than 20Pg double-stranded DN dyed by EB
    Image size: 5.7 um x4.28 um
    Lens: Transparent motorized lens, 848mm aperture 1.2 automatic
    Exposure time: 0.294ms2000ms
    Sensitivity: Low 0.01ngEB chromosomal DNA can be detected
    Detection signal-to-noise ratio: 56dB
    Excitation light source: 300nm transmission UV, 254, 365nm reflection UV
    Transmission table: Ultra-bright ultraviolet transmission table, area 200×250mm, white light: 210×260mm
    Filter: Standard 590nm, compatible with most fluorescent dyes such as EB, Sybr, GoldView, etc.
    Software: JP-GEL 1D image analysis software
  • Introduction:
    JP-2880 automatic gel imaging analysis system can be used for DNA/RNA gels, protein gels, blot hybrid membranes (including Western, Southern, Northern, Solt, dot hybrid membranes), autoradiography films, enzyme-labeled plates, thin The imaging and analysis processing of images such as layer tomography plates can perform ground total analysis, molecular weight analysis, cluster analysis, homology analysis, etc. of bands, spots and any other target areas.
