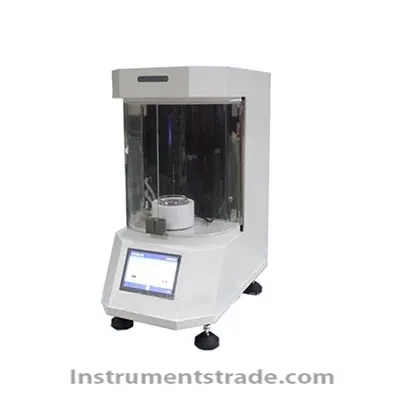

JK99 series automatic tension meter

Product ID：WBbz040

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberJK99

Brand NameZHONGCHEN

Payment TermsT/T, paypal

JK99 series automatic tension meter

Introduction
JK99 series automatic tension meter adopts platinum plate method and platinum ring method. It is a simple and easy test instrument that replaces chemical method with physical method. One-button automatic zero adjustment and one-button automatic measurement can be used quickly and accurately. The surface tension of various liquids and the interfacial tension between liquid and liquid were measured.

JK99 series main models
model	JK99B	JK99C	JK99D	JK99F	JK99M
Price (USD/Set)	4700	4300	7200	3900	7600
sensor	Japanese imported sensor	Japanese imported sensor	Japanese imported sensor	Domestic quality sensor	METTLER quality sensor
Range (mN/m)	0～500	0～500	0～500	0～1000	0～1000
Touch screen	Excluded	Contain / can be operated offline	Optional	Contain / can be operated offline	Optional
Connect computer operation	Yes	Yes	Yes	No	Yes
Roll printer	Excluded	Contain	Optional	Excluded	Optional
Instrument housing	Fine grain process ABS	Fine grain process ABS	stainless steel	Fine grain process ABS	Fine grained ABS and mirror stainless steel
Magnetic stirring	Excluded	Excluded	Contain	Excluded	Contain
Temperature control (the thermostat is optional or user-owned)	Standard circulating insulation platform with external thermostat, optional power distribution temperature control	Standard circulating insulation platform with external thermostat, optional power distribution temperature control	Standard circulating insulation platform with external thermostat, optional power distribution temperature control	Without temperature control	Standard circulating insulation platform with external thermostat, optional power distribution temperature control
Extend other optional components	Only optional computer and electronic temperature control, other components are not optional	Only optional computer and electronic temperature control, other components are not optional	Only CMC, LCD screen, printer, computer and electronic temperature control are optional. Other components are not available.	Not optional	Scalable settling analysis, dynamic bubble, contact angle measurement, density measurement, etc.

Common features of the JK99 series
1, using high-quality sensors, accurate test data, high precision, good repeatability, long life.
2. Platinum ring/platinum plate method determines the corresponding surface tension and interfacial tension as time and concentration change.
3, JK99B / JK99C / JK99D / JK99M type can be applied to the Windows operating interface, can work for a long time, record curves and store printing.
4, exquisite structure design, the platform runs smoothly, and the noise is small.
5, a set of sensor calibration circle code is standard, the instrument calibration is quick and convenient, the data is more accurate, and the internal control requirements of the user quality management system are docked.
6. The instrument provides manual zero clearing and software one-key clearing. The interval instrument automatic zero clear function can be established according to the customer's needs.
7. According to the actual needs of customers and teaching process, it can be measured step by step. There are forced lifting and lowering platform functions in software and hardware.
8, in line with national standard GBT 22237-2008, GBT 5549-2010 and GBT 6541-86, compatible with the platinum ring method and the platinum ring method, easy to compare user data and different industry standards.
9. Both the platinum plate and the platinum ring in the instrument can measure the surface tension of the liquid and the interfacial tension between the liquid and the liquid.
10, built-in calculation and correction formula in the instrument software, no cumbersome operation, no calculation, one-click automatic data results, completely eliminate human error.
11, JK99F (standard) / JK99C (standard) / JK99D (optional) / JK99M (optional) built-in touch-screen LCD screen easy to operate and display, including roll-type printer, so that it can work independently, easy to move; Key touch operation and instant display, output and print measurement results without connecting to a computer or connecting to a printer.
12, JK99B/JK99C/JK99D)/JK99M can also be connected to computer operation (including application software), automatically record the tension curve for immediate output, and can perform real-time observation and real-time recording.
13, JK99B/JK99C/JK99D)/JK99M type free configuration can be connected to the constant temperature tank circulation insulation platform, built-in temperature sensor, users can easily externally connect various thermostats (the instrument is equipped with no thermostat, the user can use the original The thermostat or our factory is equipped with). Optional power distribution temperature control.
14. The instrument can be used for medium and high viscosity liquid measurement to achieve surface tension test in ink, paint, petroleum and other industries.
15. Complete independent intellectual property rights guarantee the high quality and continuous service of software and hardware. The company's technology and after-sales personnel will serve you wholeheartedly.
JK99 series common parameters
1. Measurement range: 0 millinewtons/meter to 500 millinewtons/meter (0mN/M to 500mN/M)
(JK99F and JK99M models have a range of 0mN/M to 1000mN/m)
2. Sensitivity: 0.01 millinewtons/meter (mN/m)
3. Accuracy: 0.01 millinewtons/meter (mN/m)
4, resolution: 0.01 millinewtons / meter (mN / m)
5, detection method (two methods compatible):
a. Platinum ring method (single measurement sample volume 40~50ml)
b. Platinum plate method (single measurement sample volume 20~30ml)
6, sampling period: platinum ring method (150-200 seconds)
Platinum plate method (1-5 seconds)
7, voltage power supply: AC220 ± 5V
8, zui large power consumption: <150W
9, temperature reading accuracy: 0.1 ° C (measured with sensitive temperature sensor), 30% ~ 85% relative humidity
JK99 series standard components
1. Platinum plate comes standard with *1
2, platinum ring standard *1
3, serial extension cable *1
4, crystallizing dish *2
5, alcohol lamp* 1
6, built-in touch LCD screen 1 set (JK99C and JK99F only)
7, roll printer 1 set (JK99C only)
8, application software and operating manual electronic version *1 set
9, the operating manual paper version *1
10. 1 set of circulating current insulation platform with external thermostat (JK99B type, JK99C type, JK99D type and JK99M type only)
11, check circle code 1 set
12, level *1
13, scorpion *1
14, all stainless steel shell 1 set (JK99D type only)
15. Magnetic stirring 1 set (JK99D and JK99M only)

Introduction
JK99 series automatic tension meter adopts platinum plate method and platinum ring method. It is a simple and easy test instrument that replaces chemical method with physical method. One-button automatic zero adjustment and one-button automatic measurement can be used quickly and accurately. The surface tension of various liquids and the interfacial tension between liquid and liquid were measured.
