Introduction:

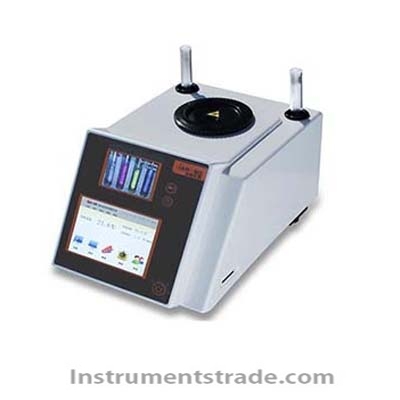

JH30 automatic melting point perfect combination of high precision temperature control technology and high-definition video camera technology, not only to provide users with accurate, stable and reliable test results, but also to bring users efficient and convenient test experience. HD video can be easily and clearly see the entire sample melting process, user-friendly sample accurately measured melting point and melting distance. Fields of use: Melting point instrument in the chemical industry, pharmaceutical research, according to an important position, is the production of food, medicine, spices, dyes and other essential organic crystal material instruments. Technical Parameters:
Temperature range: room temperature -350 ℃
Storage space: 8G
Data saved: 200
Atlas Save: None
User Management: None
Video function: take pictures
Video playback: None
Temperature minimum display value: 0.1 ℃
Heating rate: 0.1 ℃ - 20 ℃ (200 stepless adjustable)
Capillary size: diameter φ1.4mm, diameter: φ1.0mm;
Accuracy: ± 0.3 ℃ (<250 ℃)
± 0.5 ℃ (> 250 ℃)
Repeatability: 0.1 ℃ / Min when the melting point Repeatability ± 0.1 ℃
Detection methods: semi-automatic (automatic temperature control, manual detection)
Power: 220V 50HZ Power: 120W
Display: TFT HD true color screen
Data Interface: USB RS232 network port
Magnification: 7
Processing capacity: 4 / batch (at the same time can do four samples)
