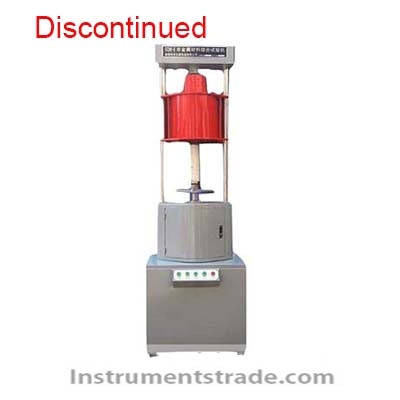

JH-I-13 Material High Temperature Comprehensive Physical Property Tester
Introduction: The JH-I-13 material high temperature comprehensive physical property tester is suitable for the determination of the comprehensive performance of inorganic metal materials at high temperature and normal temperature. It is also suitable for the high temperature performance test of the modeling mixture that simulates the real situation of liquid metal pouring into the mold. JH-I-13 Material High Temperature Comprehensive Physical Property Tester This instrument is mainly used for scientific research institutions, universities of engineering and factories to test the high temperature performance of inorganic non-metallic materials and modeling mixtures. It can be used in the range of room temperature to 1400 ℃. The following tests. The thermal expansion of the sample at high temperature, the high temperature compressive strength, the thermal expansion force of the sample, the thermal deformation of the sample under a fixed load, the residual strength, and the compressive strength at room temperature. technical parameter: Sample standard: Ф30×50mm cone. Load range: 0～28.29MPa (0～2000㎏). Measuring deformation range: 0～±5mm, display resolution 0.01mm. Heating temperature range: normal working temperature ≥ room temperature～1350℃, up to 1400℃ in a short time Force measurement accuracy: <±1%FS. Deformation measurement accuracy <±1%FS. Heating speed: user setting, constant speed heating, program control, two program segments. Silicon carbon tube high-temperature furnace parameters: furnace hall size Ф50 mm. The electric furnace power is 2.5kw. Loading speed: 0.8～8mm/min, manual adjustment. Main body of the instrument: length×width×height=720×500×1644mm; control cabinet: desktop and vertical two types; Whole machine weight: 300㎏; machine power consumption: <3kw. Working conditions. Ambient temperature: 0～40℃, relative humidity＜85﹪RH. Power supply: AC single-phase 220V±10﹪50HZ. No strong magnetic interference, no strong column vibration, no corrosive gas, and reliable grounding of the power supply system is required.
Introduction: The JH-I-13 material high temperature comprehensive physical property tester is suitable for the determination of the comprehensive performance of inorganic metal materials at high temperature and normal temperature. It is also suitable for the high temperature performance test of the modeling mixture that simulates the real situation of liquid metal pouring into the mold. JH-I-13 Material High Temperature Comprehensive Physical Property Tester This instrument is mainly used for scientific research institutions, universities of engineering and factories to test the high temperature performance of inorganic non-metallic materials and modeling mixtures. It can be used in the range of room temperature to 1400 ℃. The following tests. The thermal expansion of the sample at high temperature, the high temperature compressive strength, the thermal expansion force of the sample, the thermal deformation of the sample under a fixed load, the residual strength, and the compressive strength at room temperature.
