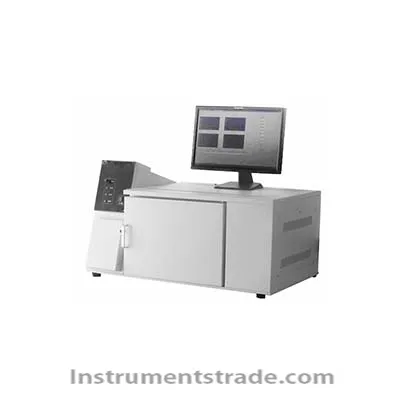

JF0428Z automatic grease high temperature life tester
Introduction: The automatic grease high temperature bearing life tester adopts computer automatic control and automatically judges the results. After the sample is installed, the instrument automatically performs intermittent work according to the standard requirements, and the whole process does not require manual adherence, which reduces the operation intensity. In order to avoid safety accidents, the program has a fault reminder, and the instrument will automatically shut down when it fails to ensure the safety of equipment or other hardware. Features: 1. High speed DC motor 10000r/min±200r/min; 2. Digital display of motor speed, adjustable, and equipped with overload protection device; 3. The test bearing meets the standard requirements; 4. Heat insulation material is used in the heating box for heat preservation; 5. Fixed loading device, no deviation, radial loading 22N, axial loading 22N; 6. Microcomputer temperature controller, digital display, accuracy ±1℃ PT100 sensor; 7. Digital display timer to record the test time; 8. There is a hole for inserting a thermometer on the bearing sleeve; 9. Long-life dry-burning electric heater, stainless steel box, easy to clean; 10. Windows operating system, Chinese interface; 11. The test bearing tooling is convenient to disassemble and operate; 12. The system automatically detects faults and shuts down; 13. The test data can automatically generate the curve and display it in digital form; 14. The test results are automatically stored and can be queried; Technical parameter: Applicable standard: SH/T0428 ASTM D3336 Heating method: electric heater heating Speed display: digital display speed Temperature control method: digital display PID temperature controller Timing method: digital display timing Temperature control range: normal temperature ~ 371 ℃ Loading load: 22.24N Temperature control degree: ±1℃ Machine power: 1.5KW Working power supply: AC220V/50HZ Control method: computer automatic control, test results
Introduction: The automatic grease high temperature bearing life tester adopts computer automatic control and automatically judges the results. After the sample is installed, the instrument automatically performs intermittent work according to the standard requirements, and the whole process does not require manual adherence, which reduces the operation intensity. In order to avoid safety accidents, the program has a fault reminder, and the instrument will automatically shut down when it fails to ensure the safety of equipment or other hardware.
