Introduction

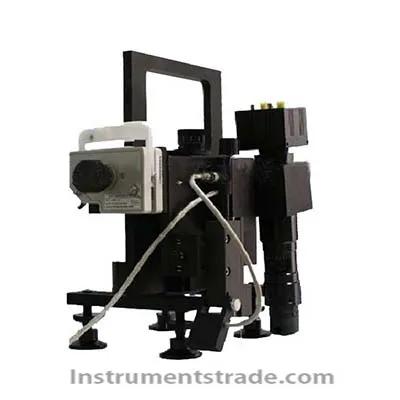

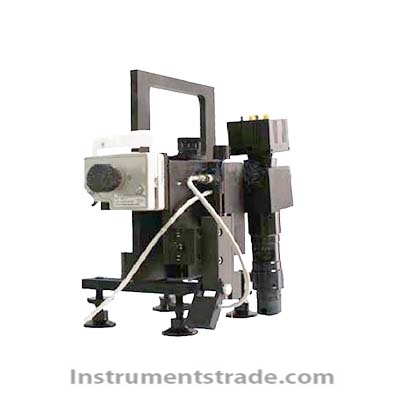

JC2000P contact angle measuring instrument is mainly used to measure the contact angle (cleanliness) of liquid on large glass surface, that is, the wettability of liquid to solid, and the contact angle of liquid in external phase. The instrument can measure the contact angle of various liquids to various materials, such as bulk materials, fiber materials, textile materials, etc. Powder samples can also be measured after tableting. At the same time, this series of instruments can measure and calculate surface/interfacial tension, CMC, droplet shape size, and surface free energy.
Characteristics
1. Using computer multimedia technology, the optical system and CCD camera are combined to make the image of the droplet clearly displayed on the computer screen, and the image can be stored for measurement in an instant to avoid measurement failure caused by liquid evaporation.
2. It has three kinds of screenshots: instant freezing, automatic continuous shooting and high-speed photography. Even the volatile liquid can ensure accurate measurement. At the same time, the external tangent is a subjective factor affecting the problem of Zui. The JC2000 series contact angle measuring instrument makes the geometric operation in the software, and the contact angle is no longer artificially judged.
3. Hand-held products, no need to cut products, no separate sample stage.
System parameters:
1 size (W × D × H): 155x80x200mm
2 Weight: 2.5Kg
3 Power: PC USB 2.0
4 Optical system: 1.3 megapixel CCD Camera
5 resolution: 800x600 pixel
6 image capture speed: 25 frames / sec
7 Light source: High brightness LED cold light source
8 sample stage: none
9 sample size: long ≦∞, wide ≦∞, height difference = 0mm
10 platform adjustable range: none
11 Analysis method: θ/2 method, high-volume method (3-point method for plane, 4-point method for concave and convex surface), 5-point method curve fitting (for advancing angle, receding angle), and angle method (tangent method)
12 Measurement methods: static measurement (average contact angle, left and right contact angle), dynamic measurement, droplet volume measurement, droplet direct measurement
13 Measurement range: 0～180°
14 Measurement accuracy: 0.1° or 0.5° (optional in two)
15 image format: BMP file
16 image format: AVI file
17 Applicable operating system: 1).Windows 7
2).Windows XP SP2
3).Windows Vista Home Premium
Other Accessories:
1 USB signal cable Standard
2 Installation Software Standard
3 Operating Manual Standard
Instrument component
1. usb digital CCD camera 1
2. Continuous zoom optical system 1
3. Creeping sample pump 1
4. Manual CCD tilting platform 1
5. Image analysis measurement system application software 1
6. Manual and operating manual electronic version 1 copy
Computer requirements:
JC2000P contact angle measuring instrument must be equipped with a matching computer. If the supporting computer is selected by the supplier, it must be paid 5,000 yuan/set to the supplier. The brand is Dell. If the user has a computer, the configuration requirements are as follows:
The operating system is windows2000 or windows XP, usb2.0 standard, with COM port (serial port) and has an empty PCI slot, memory 256M or more, other random.
