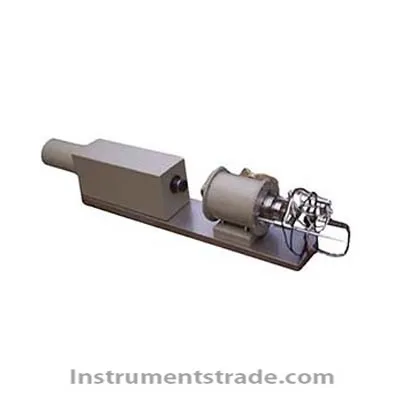

JC2000H high temperature contact angle measuring instrument Introduction The C- and D-series contact angle measuring instruments can provide room temperature -100 ° C and room temperature -400 ° C high temperature chambers, but the higher temperature contact angle measurement requires a dedicated high temperature device JC2000H series high temperature contact angle measuring instrument. JC2000H1 Features: 1. Computer observation image, dedicated contact angle software measurement 2. Industrial USB standard CCD 3. Special special background light source technical parameter: Contact angle measurement accuracy: 0.1° Microscope: 0.7-4.5× continuous zoom Insulated visual window: φ20mm Rated power: 3KW Rated voltage: AC 380V or AC220V Temperature control: room temperature -1100 ° C Empty furnace heating time: ≤180min Heating rate: 3-5 ° C / min Vacuum limit: 6×10-2pa Temperature control accuracy: ±1 °C Furnace size: φ40 × 300mm (constant temperature zone 150mm)
JC2000H2 Features: 1. Computer observation image, dedicated contact angle software measurement 2. Industrial USB standard CCD 3. 0.7-4.5× continuous zoom microscope 4. Special special backlight source technical parameter: Contact angle measurement accuracy: 0.1° Insulated visual window: φ20mm Rated power: 3KW Rated voltage: AC 380V or AC220V Temperature control: room temperature -1700 ° C Empty furnace heating time: ≤180min Furnace size: φ40 × 300mm (constant temperature zone 150mm) Heating rate: 3-5 ° C / min Vacuum limit: 6×10-2pa Temperature control accuracy: ±1 °C
Introduction The C- and D-series contact angle measuring instruments can provide room temperature -100 ° C and room temperature -400 ° C high temperature chambers, but the higher temperature contact angle measurement requires a dedicated high temperature device JC2000H series high temperature contact angle measuring instrument.
