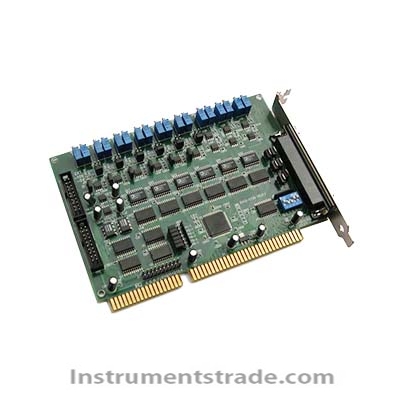

IDAQ-5726 6-channel 12 bit analog D/A card Introduction: IDAQ-5726 is a D/A card with 6 channels of 12 bit analog output. It is specifically designed for industrial environments and is very practical for applications that require the output of multiple analog signals or current loops. In addition to analog output, it also provides 16 digital inputs. TTL compatible DI and DO ports can be easily connected to terminal boards. IDAQ-5730 can provide isolated digital input channels and isolated digital output channels, with isolation protection voltage up to 2500VDC They are an ideal choice for industrial applications that require high voltage isolation. In addition, all output channels provide high voltage protection. Features: 6-way independent analog output 12 bit resolution dual buffer D/A converter Multiple voltage ranges: ± 5V, ± 10V, 0-5V, 0-10V, and 4-20mA current loop 16 digital inputs and 16 digital outputs Technical parameters: Number of channels: 6 Resolution: 12 bits, double buffering Output range: Unipolar: 0-5V, 0-10V; Bipolar: ± 5V, ± 10V Current loop (sink): 4～20mA， External ± 10V DC or AC reference voltage Throughput: 15KHz Establishment time: ≤ 70 milliseconds Accuracy: ± 0.012% of full scale Temperature drift: 5 PPM/℃ (0 ℃~50 ℃) Linearity: ± 1/2 bit Voltage output current: ± 5mA (maximum) Current loop excitation voltage: minimum+8V, maximum+36V or 4-20mA (current loop) Reset (power on) state: All D/A channels output 0V after power on (bipolar and unipolar modes) Digital input Channel: 16 TTL compatible DI channels Logic level 0:0.8V (maximum) Logic level 1:2.0V (minimum) Input load: 0.5V @ 0.4mA maximum (low level); 2.7V @ 50mA minimum (high level) Digital output Channel: 16 TTL compatible with DO Logic level 0:0.5V @ 8.0mA (sink) Logic level 0:2.4V @ 0.05mA (source) General characteristics Power consumption:+5V @ 500mA (typical), 1A (maximum)+ 12V @ 80mA (typical), 110mA (maximum)- 12V @ 60mA (typical), 90mA (maximum) Working temperature: 0 ℃~50 ℃ Storage temperature: 0 ℃~65 ℃ Interface: 1 DB-37 hole type interface; Two 20 core needle type flat cable interfaces Size: 140mm(L)X100mm（H）
Introduction: IDAQ-5726 is a D/A card with 6 channels of 12 bit analog output. It is specifically designed for industrial environments and is very practical for applications that require the output of multiple analog signals or current loops. In addition to analog output, it also provides 16 digital inputs. TTL compatible DI and DO ports can be easily connected to terminal boards. IDAQ-5730 can provide isolated digital input channels and isolated digital output channels, with isolation protection voltage up to 2500VDC They are an ideal choice for industrial applications that require high voltage isolation. In addition, all output channels provide high voltage protection.
