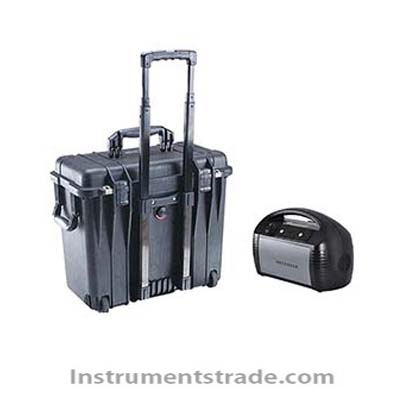

Introduction: The IC-8668 portable ion chromatograph can detect inorganic anions and cations, small molecular organic acids, and organic amines in samples. For the rapid analysis of the on-site environment after explosions and chemical material leakage incidents, the explosive residues of nitrite and nitrate from the explosive residues at the terrorist attack site can be used as explosive sources to provide powerful clues for real-time investigation. Adopt the special shell produced by PELICAN imported from the United States, sealed and waterproof, high hardness, pressure resistance, corrosion resistance, with high and low pressure environment pressure balance design, can accept high altitude environment and harsh outdoor environment operation. Technical parameter: 1. Constant temperature conductivity detector; Double five-pole conductivity cell: ring-shaped passivated 316 stainless steel electrode, PEEK material, superior chemical inertness; Pool volume ≤0.9μl; Resolution ≤0.0020ns; Temperature control range: +5℃～60℃, temperature control accuracy: ±0.01℃, temperature compensation: 1.7%/℃; Detection range: no range limit; Baseline noise: not more than 0.5% FS, baseline drift is not more than 5% FS; 2. High pressure PEEK pump a. PEEK material, high pressure resistance, low flow accuracy, chemically inert non-metallic non-damping pump head, connected to full peek pipeline, suitable for eluent and reverse phase organic solvent with pH>14. b. With double plunger automatic cleaning function. c. Slow start, stop, and automatic saving of user data. 3. Optional eluent generator (provide proof of independent intellectual property rights) a. There is no need to reconfigure the eluent every day, reducing the user's workload. b. You only need to prepare ultrapure water for each use to produce the eluent with the required concentration, simplifying the operation process. c. The user can replace the mother liquor by himself, with low cost and high efficiency. d. Simple start-up, easy operation and low failure rate. e. Stable work and good repeatability. 5. Power a. A portable working power supply, equipped with a lithium battery, supports the normal operation of the instrument for 8 hours in the event of a power failure. 220V input, 220V/24V output, and equipped with a flashlight, mobile phone charging port, multi-function, convenient for field measurement, long-term battery life. b. There is a 12V car cigarette lighter interface, which can be powered by a 12V car cigarette lighter power supply.
Introduction: The IC-8668 portable ion chromatograph can detect inorganic anions and cations, small molecular organic acids, and organic amines in samples. For the rapid analysis of the on-site environment after explosions and chemical material leakage incidents, the explosive residues of nitrite and nitrate from the explosive residues at the terrorist attack site can be used as explosive sources to provide powerful clues for real-time investigation. Adopt the special shell produced by PELICAN imported from the United States, sealed and waterproof, high hardness, pressure resistance, corrosion resistance, with high and low pressure environment pressure balance design, can accept high altitude environment and harsh outdoor environment operation.
