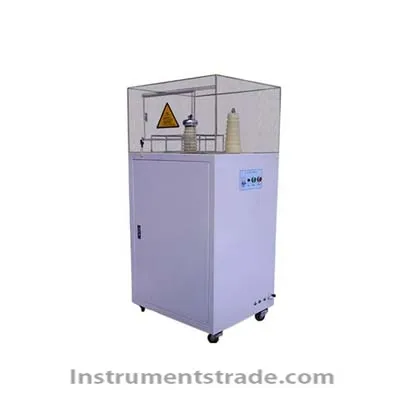

Introduction: The voltage breakdown tester to meet GB1408-2006 insulation material electrical strength test method, GB / T1695-2005 vulcanized rubber power frequency voltage breakdown strength and voltage strength test, GB / T3333-1999 power frequency voltage breakdown test method , HG / T 3330 insulation paint film breakdown strength determination, GB12656-1990 capacitor voltage-frequency breakdown test method and ASTM D149 standards. Mainly used in solid insulation materials such as: plastic, film, resin, mica, ceramic , Glass, insulating paint, cardboard and other media in the power frequency voltage or DC voltage breakdown strength and voltage withstand time of the test; the instrument uses the most advanced Taiwan Sunplus 16-bit single-chip control of the test process can be a variety of data Fast, accurate collection, processing, and access, display, print. Features: 1. The instrument uses advanced non-contact original uniform voltage regulator, eliminating the similar products in the mechanical transmission step-up 2. Support short circuit test requirements. (Other similar products without this feature) 3. A test can be done at the same time 3-5 samples (similar products can only do a test sample) Technical Parameters: Input voltage: 220 V AC Output voltage: AC 0--50 KV; DC 0 - 50 KV Electrical capacity: 6 KVA High-pressure classification: 0--5KV; 0-10KV; 0 - 20KV; 0 - 50KV Boost rate: 500 V / S 1000 V / S 1500 V / S 2000 V / S Test method: DC test: 1, uniform boost 2, step-up step 3, pressure test AC test: 1, uniform boost 2, step-up step 3, pressure test Over-current protection devices should have sufficient sensitivity to ensure that the sample is cut off within 0.1S cut off the power supply. Leakage current selection: 1-100 mA can be freely set by the computer software. Voltage measurement error: ≤ 2% Test voltage continuously adjustable: 0 - 50 KV
Introduction: The voltage breakdown tester to meet GB1408-2006 insulation material electrical strength test method, GB / T1695-2005 vulcanized rubber power frequency voltage breakdown strength and voltage strength test, GB / T3333-1999 power frequency voltage breakdown test method , HG / T 3330 insulation paint film breakdown strength determination, GB12656-1990 capacitor voltage-frequency breakdown test method and ASTM D149 standards. Mainly used in solid insulation materials such as: plastic, film, resin, mica, ceramic , Glass, insulating paint, cardboard and other media in the power frequency voltage or DC voltage breakdown strength and voltage withstand time of the test; the instrument uses the most advanced Taiwan Sunplus 16-bit single-chip control of the test process can be a variety of data Fast, accurate collection, processing, and access, display, print.
