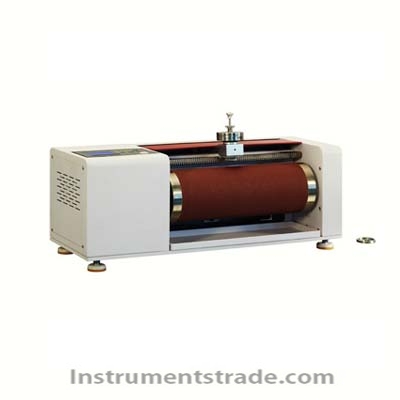

HY-766 DIN abrasion tester Introduction: This machine is suitable for testing the wear resistance of polyester shoe soles, finished shoe soles, and polymer sheet materials. Under the rotation of the wear wheel, the sample is rubbed with sandpaper of a certain degree of sand to produce wear, thus evaluating its wear performance and having high performance. The characteristics of good reproducibility and easy operation. Meet the standards: GB/T 9867,GB/T 20991,GB/T 26703,EN ISO 20344,ISO 4649,DIN 53516 Technical parameters: Roller diameter: Ф150mm Wear stroke: 40 ± 0.2M Travel setting: 20m/40m pre-set Lateral displacement of fixture: 4.20 ± 0.04r/min Roller speed: 40 ± 1r/min Test method: Self rotation/Non rotation pre-set Load capacity: 2.5 ± 0.1N, 5 ± 0.1N, 10 ± 0.1N Sandpaper: 60 # German original factory Volume: 95 * 66 * 31cm Weight: 55kg Power Supply: AC220V 50HZ enclosure: One Chinese manual for the instrument. One instrument warranty card. One international third-party CNAS testing instrument calibration report.
Introduction: This machine is suitable for testing the wear resistance of polyester shoe soles, finished shoe soles, and polymer sheet materials. Under the rotation of the wear wheel, the sample is rubbed with sandpaper of a certain degree of sand to produce wear, thus evaluating its wear performance and having high performance. The characteristics of good reproducibility and easy operation. Meet the standards: GB/T 9867,GB/T 20991,GB/T 26703,EN ISO 20344,ISO 4649,DIN 53516
