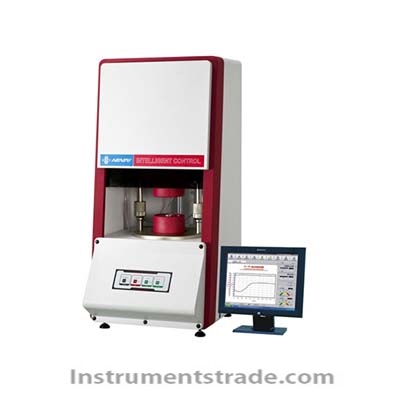

HY-750 vulcanization testing machine Introduction: The HY-750 vulcanization testing machine includes: main unit, temperature measurement, temperature control, data acquisition and processing, sensors, and electrical interlocking. The temperature measurement and control circuit is composed of an imported adaptive PID temperature controller, solid-state relay, platinum resistor, and heater. It can automatically track changes in the external power grid and environmental temperature, automatically correct PID parameters, achieve fast and accurate temperature control, and automatically display real-time temperature values and set values. The automatic detection of torque signals during the rubber vulcanization process is completed through data collection, processing, and electromechanical interlocking. After vulcanization is completed, the signals are automatically processed, calculated, and vulcanization curves, tables, and various process parameters are automatically drawn through a printer (or plotter). The vulcanization time and torque are displayed through an 8-bit LED, and various sound alarm functions are automatically implemented. Technical parameters: 1. Temperature range: Room temperature~200 ℃, can be ordered to provide higher temperatures 2. Temperature accuracy: Temperature error within ± 0.3 ℃ 3. Temperature display resolution: 0.1 ℃ 4. Swing frequency: 1.6Hz (100r/min) 5. Torque range: using four settings of 25100, 200lb in, or according to user settings 6. Torque unit: kg-cm,lb-in,N-m 7. Swing angle: ± 0.5 °± 1 °± 3 ° 8. Voltage: Ac220 ± 10% 50Hz, 1.5KW 9. Air pressure: 65psi (4.6bar) (buyer's own air compressor) 10. Test piece volume: approximately 5 cubic centimeters 11. Volume: 131 * 56 * 62cm 12. Net weight: 250kg 13. Display: Hengyu dedicated testing software 14. Control: Computer control
Introduction: The HY-750 vulcanization testing machine includes: main unit, temperature measurement, temperature control, data acquisition and processing, sensors, and electrical interlocking. The temperature measurement and control circuit is composed of an imported adaptive PID temperature controller, solid-state relay, platinum resistor, and heater. It can automatically track changes in the external power grid and environmental temperature, automatically correct PID parameters, achieve fast and accurate temperature control, and automatically display real-time temperature values and set values. The automatic detection of torque signals during the rubber vulcanization process is completed through data collection, processing, and electromechanical interlocking. After vulcanization is completed, the signals are automatically processed, calculated, and vulcanization curves, tables, and various process parameters are automatically drawn through a printer (or plotter). The vulcanization time and torque are displayed through an 8-bit LED, and various sound alarm functions are automatically implemented.
