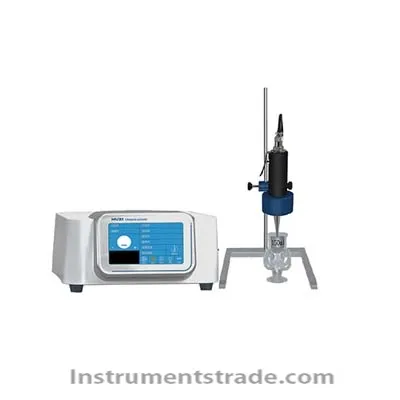

HX-250 Portable Ultrasonic Crusher

Product ID:SHGCxbps072

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHX-250
    Brand NameSHANGHAIHUXI
    Payment TermsTT,PAYPAL
    HX-250 Portable Ultrasonic Crusher

    Introduction:
    The HX-250 handheld ultrasonic crusher is a multifunctional and multi-purpose instrument that utilizes ultrasonic waves to generate cavitation effects in liquids. Used for cell crushing, emulsification, dispersion, homogenization, extraction, defoaming, cleaning, preparation of nanomaterials, and acceleration of chemical reactions. The instrument adopts LCD display, with two working modes: automatic and manual (foot pedal). The ultrasound time and power are stable at will, and the sample temperature is detected and displayed, with automatic frequency tracking and other functions. An ultrasonic cell crusher suitable for small volume sample processing.
    Features:
    1. The integrated design of the probe and host, with small volume, large processing capacity, and compact structure, has the advantages of high efficiency, energy conservation, and portability in the integrated design of the ultrasonic vibration system;
    2. Ultrasound can be manually controlled or fixed on a rack, making it particularly suitable for handling trace or small amounts of samples;
    3. The amplitude lever is made of titanium alloy material, which has the characteristics of high strength, high sound speed, good corrosion resistance, and high heat resistance, thereby extending the service life of the instrument.
    Technical parameters:
    Power: 2.5-250W continuously adjustable
    Crushing capacity: 0.1-150ML (corresponding amplitude lever needs to be selected)
    Display method: True color 7-inch capacitive touch screen display
    Single ultrasound time: 0.1-99.9S
    Single interval time: 0.1-99.9S
    Total time (ultrasound+gap): 1-99H59M59S
    Frequency range: 20-30KHz
    Temperature control range: 0-100 degrees (optional low temperature constant temperature)
    Alarm functions: time, overload, no-load, over temperature
    Standard amplitude lever: Φ 5 (mm)
    Optional variable amplitude lever: Φ 2. 3,5,6 (mm)
    Data storage: 20 sets
    Power supply (optional 110V): 220V/110V 50Hz/60Hz
    Instrument size: 410 * 225 * 290mm

  • Introduction:
    The HX-250 handheld ultrasonic crusher is a multifunctional and multi-purpose instrument that utilizes ultrasonic waves to generate cavitation effects in liquids. Used for cell crushing, emulsification, dispersion, homogenization, extraction, defoaming, cleaning, preparation of nanomaterials, and acceleration of chemical reactions. The instrument adopts LCD display, with two working modes: automatic and manual (foot pedal). The ultrasound time and power are stable at will, and the sample temperature is detected and displayed, with automatic frequency tracking and other functions. An ultrasonic cell crusher suitable for small volume sample processing.
