1 Sales HWS-70B constant temperature and humidity chamber,Manufacturer
Position: Home > > Physical property test > Environmental test box > Constant temperature and humidity test chamber > HWS-70B constant temperature and humidity chamber

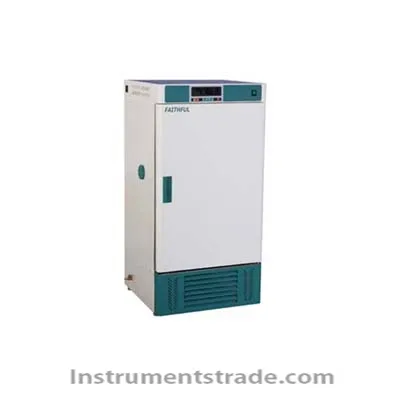

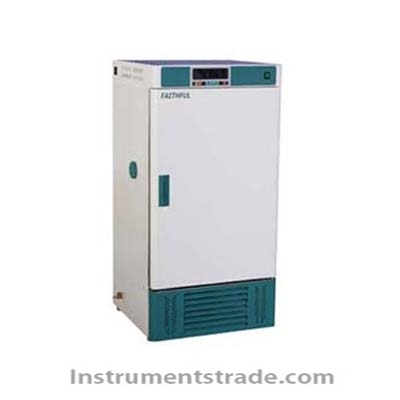

HWS-70B constant temperature and humidity chamber

Product ID:WHhwhs028

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHWS-70B
    Brand NameFEISIFU
    Payment TermsT/T, paypal
    HWS-70B constant temperature and humidity chamber

    Technical Parameters:
    Operating temperature range: no humidification: 0 ~ 65 ° C; with humidification: 10 ~ 65 ° C
    Temperature resolution: 0.1 °C
    Temperature fluctuation: High temperature: ±0.5°C Low temperature: ±1°C
    Temperature distribution accuracy: ±1 °C
    Controlled humidity range: 45% to 95% RH
    Humidity fluctuation range: ±5%RH
    Studio: Mirrored stainless steel
    Housing: cold rolled steel plate, surface electrostatic spraying
    Insulation: Polyurethane
    Heater: Stainless steel electric heating tube
    Rated power: 1.8kW
    Compressor: air-cooled hermetic compressor
    Refrigerant: R134a
    Defrost construction: automatic control of intelligent frost
    Humidification method: built-in
    Test hole: inner diameter 43mm
    Controlled external power supply: 1 external universal socket
    Temperature control mode: 30-segment LCD program
    Temperature setting method: Touch the button to set
    Temperature indication method: Measurement temperature: liquid crystal upper position; set temperature: liquid crystal lower position
    Humidity control mode: automatic
    Timer: 0 to 99.9h × 30 segments (with timing wait function)
    Running function: program running, timing running, automatic stop
    Sensor: Pt100
    Studio (width * depth * height mm): 420 * 350 * 500
    Dimensions (width * depth * height mm): 570 * 560 * 1030
    Packing (width * depth * height mm): 730 * 720 * 1190
    Inner volume: 70L
    Partition load: 15kg
    Number of partitions: 9 layers
    Separator spacing: 35mm
    Power supply (50/60Hz) rated current: AC220V/8.2A
    Net weight / gross weight kg: 69/92
