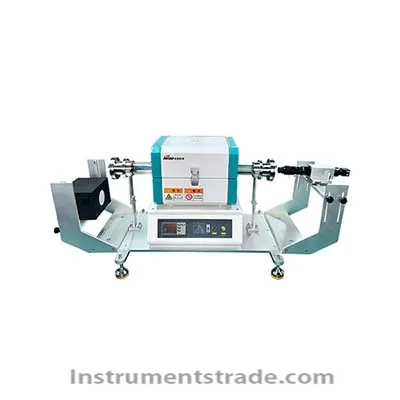

HTC1200 high-temperature contact angle measuring instrument Introduction: High temperature contact angle measuring instrument (HTC) is used to study the variation law of contact angle between the melt and its corresponding substrate material under high temperature conditions. The high-temperature contact angle measuring instrument (HTC) can achieve surface and interface performance testing of high melting point materials under high vacuum or inert gas protection atmosphere, while for low melting point materials, it can visualize and quantify the shrinkage, deformation, melting, wetting, spreading, and solidification behavior during the temperature rise and fall process. Features: 1. Temperature options: 2200 ℃, 1700 ℃, 1650 ℃, 1200 ℃, 30 level program temperature control 2. Contact angle measurement range: 0~180;, Precision 0.1; 3. Can be paired with inert gas (argon, nitrogen...) protection or high vacuum (6.67 * 10-7Pa) environment 4. High speed and high-resolution industrial cameras, capture speed≥ 220 frames per second, continuous image recording throughout the entire process 5. Intelligent image analysis and data processing software: automatically and continuously calculate the contact angle θ of high-temperature melt 6. 470nm blue light source with continuously adjustable brightness 7. Integrated design is more ergonomic Technical parameters: Temperature range: room temperature~1200 ℃ Long term use temperature: room temperature~1150 ℃ Temperature thermocouple: temperature probe Temperature measurement accuracy:± 1 ℃ Temperature control: software programming, 30 stage temperature setting Heating rate:≤ 15K/min Heating element: resistance wire Furnace material: quartz Thermal insulation material: microcrystalline alumina fiber Sample size: 5 * 5 * 5mm Optical system: Industrial continuous magnifying lens 0.7-4.5X, 12mm adjustable focal length Camera speed: Video speed 227 frames per second, 1.6 million pixels Light source: High power blue LED light source, continuously adjustable brightness Interface: USB3.0 interface Contact angle test range: 0°- 180° Contact angle analysis methods: 5 commonly used fitting methods Video recording function: Click record to automatically save the entire measurement process as a video file Continuous measurement: adjustable measurement interval, real-time recording, continuous measurement Calculation of average contact angle: The left and right contact angle values are calculated and compared separately, and the software automatically calculates the average contact angle Temperature control settings: Custom temperature control, up to 30 temperature control segments can be set
Introduction: High temperature contact angle measuring instrument (HTC) is used to study the variation law of contact angle between the melt and its corresponding substrate material under high temperature conditions. The high-temperature contact angle measuring instrument (HTC) can achieve surface and interface performance testing of high melting point materials under high vacuum or inert gas protection atmosphere, while for low melting point materials, it can visualize and quantify the shrinkage, deformation, melting, wetting, spreading, and solidification behavior during the temperature rise and fall process.
