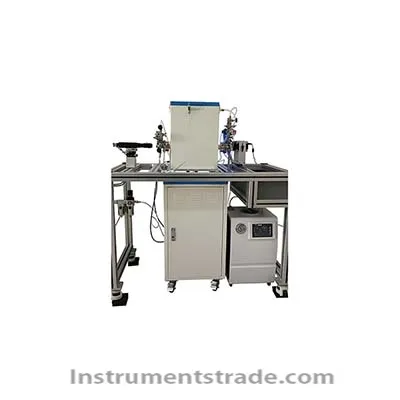

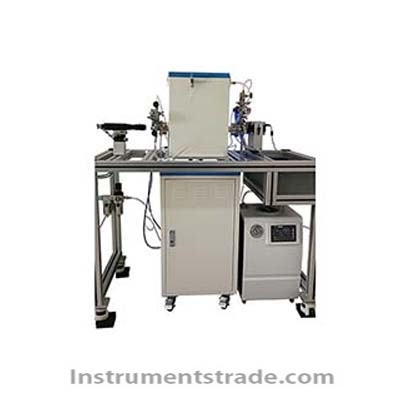

HTC-1200 high temperature contact angle measuring instrument
Introduction: Beto scientific high temperature contact angle measuring instrument HTC is commonly used in ceramic material research, metal material research, brazing research, aerospace material research, steel smelting research, composite material research, etc. It is mainly used to measure the surface contact angle, wetting performance, surface interfacial tension, surface energy and other properties of the sample under high temperature conditions through image profile analysis under high temperature vacuum conditions. Beto scientific high temperature contact angle measuring instrument HTC is cost-effective, fully functional, stable in heating, high in vacuum, and accurate in results, which can meet the scientific research needs of various metals, ceramics and composite materials. Features: 1. The highest temperature is optional: 2200°C, 1700°C, 1650°C, 1200°C, 30-level program temperature control 2. Measuring range of contact angle: 0~180° Accuracy: ±0.1° 3. It can be protected by inert gas 4. High vacuum: 1*10-3Pa 5. The light source is 470nm blue light, the brightness is continuously adjustable 6. Image acquisition: acquisition speed ≥200 frames/sec, continuous image recording throughout the entire process 7. Intelligent image analysis and data processing software: automatically and continuously calculate the contact angle of high temperature melt θ technical parameter: Model: HTC-1200 Maximum temperature: 1200℃ Maximum working temperature: 1150℃ Temperature control accuracy: ±3℃ High temperature under vacuum: 1100℃ Thermocouple: S type Maximum heating rate: 8-10K/min Length of constant temperature zone: 40mm Heating body: resistance wire Hearth material: Quartz Furnace size: Φ40mm*500mm Sampling method: Put the ceramic plate directly Insulation material: microcrystalline alumina fiber Cooling device: flange cooling at both ends Over temperature protection: √ Overvoltage protection: √ Voltage: 220V Power: ≈2KW
