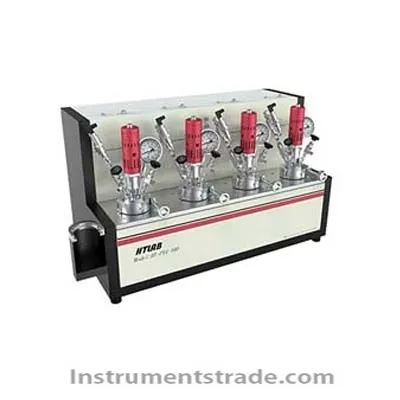

HT-PXA4 - 250FJ 4 station parallel reactor Introduction: Multi position parallel reactor is an upgraded and integrated product of the basic model, which greatly saves the space resources of the laboratory. This type of reactor is mainly used for laboratory parallel tests, constant variable comparative analysis tests, etc. It is applicable to petroleum, chemical industry, pharmacy, materials, metallurgy and many other fields. Such as catalytic reaction, polymerization, supercritical reaction, high-temperature and high-pressure synthesis, hydrogenation reaction, etc. Multi position parallel reactors mainly include A, B and C characteristic: 1. Multi bit parallel integration design, saving floor space 2. Multi station parallel design, convenient for constant variable analysis condition screening 3. Each station can be controlled independently, and users can customize and select reaction conditions 4. The kettle and heating furnace can be separated quickly 5. Magnet mixing or mechanical mixing can be selected according to customer requirements 6. PLC+touch screen or computer control can control the acquisition of temperature, pressure, speed and other data and form a historical trend curve. All data can be stored and exported. The user can define the upper limit of temperature and pressure, and have an over temperature and over pressure alarm interlock to ensure the safety of the experiment. 7. Each station can be equipped with centralized air intake and exhaust, process sampling, built-in cooling coil, isobaric feeding, condensation reflux recovery and other functions according to user requirements Technical parameters: Number of stations: 4 stations, which can be customized according to specific requirements Volume: 50/100/250/500ml, customizable Material: standard 316L, customized Hastelloy, Monel, titanium, etc Temperature (adjusted for different structures): service temperature: 300 ℃; Design temperature: 350 ℃ Pressure: service pressure: 10Mpa; Design pressure: 12.5MPa Sealing structure: flange structure/quick opening structure/one key quick opening structure Mixing type: magneto stirring or mechanical stirring Heating mode: electric heating Kettle cover opening: mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. Can be adjusted according to customization requirements Control mode: PLC+touch screen or computer control Extended functions: temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized
