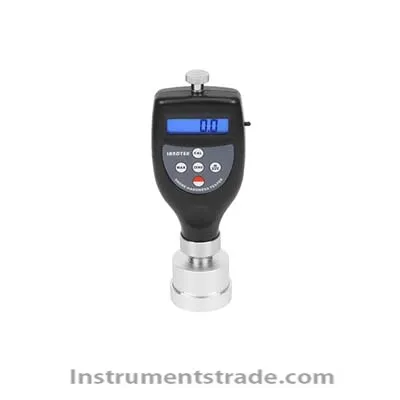

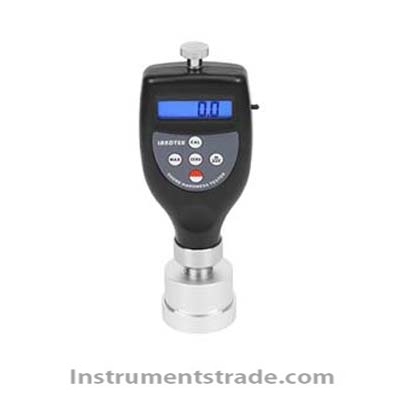

Introduction: The principle used to measure fabric stiffness is based on measuring the ball-to-spool penetration resistance under a known spring load. The measurement principle is the same as the Shore A hardness test. Features: 1. Convertible probe, the curved end of the probe is used for bobbins with a diameter of less than or equal to 400mm, and the flat end of the probe is suitable for bobbins with a diameter of more than 400mm. 2. Average value calculation, maximum value latch, undervoltage alarm indication function. 3. Use USB data line output to communicate with PC. 4. Provide Bluetooth data output options. Technical parameter: Model: HT-6510T-2.5 Display parameters: hardness value/average value/max value Indenter: Spherical 2.5mmΦ Convertible probe: The curved end of the probe is used for bobbins with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for bobbins with a diameter greater than 400mm Application: For tightly wound synthetic fibers, finished fibers and filament bobbins Display range: 0H-100H (hardness scale) Measuring range: 10H-90H (hardness scale line) Accuracy: ≤±1H Resolution: 0.1H Low voltage prompt: √ Automatic shutdown function: √ Indentation depth: 0mm-2.5mm Measuring pressure: about 12.5N Measuring spring force: 0.55N-8.065N Indenter Diameter: 51mm Spherical radius of working surface: 55mm (when measuring with the curved end of the probe) Working plane: 45mmΦ (when using the probe plane end to measure) Working environment: Temperature: 0ºC~40ºC Humidity: ˂80%RH Power supply: 2 AA batteries Dimensions: 177mmx65mmx45mm Weight (without battery): about 285g (without battery)
Introduction: The principle used to measure fabric stiffness is based on measuring the ball-to-spool penetration resistance under a known spring load. The measurement principle is the same as the Shore A hardness test.
