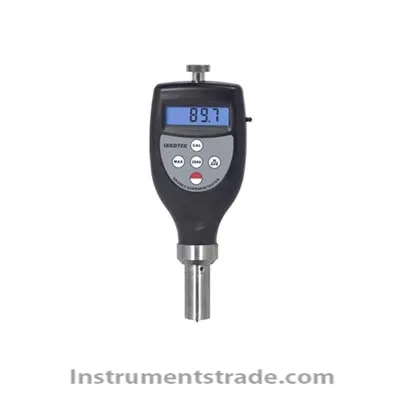

HT-6510A Shore hardness tester Introduction: HT-6510A Shore hardness tester is suitable for hardness measurement of rubber and plastic products on site. Comply with the following standards: Test Method for Indentation Hardness of Rubber Pocket Durometer (GB/T 531-1999); Test Method for Shore Hardness of Plastics GB/T 2411-80; DIN 53505； ISO 868； ISO 7619； ASTMD 2240； JISK7215。 characteristic: 1. Average value calculation function. 2. Locking function of hardness value. 3. Undervoltage alarm indication function. 4. Use "USB data line output" and "RS-232 data line output" to communicate with PC. 5. Provide Bluetooth data output options. Technical parameters: Measuring probe: R0.79 cone Application fields of material hardness test: soft rubber, soft vulcanized rubber, natural rubber, NBR, thermoplastic plastic, thermoplastic elastomer, wax, felt products, leather products Hardness value: 20A~90A Accuracy: ≤± 1H Display parameters: hardness value/average value/* * value Measurement unit: HA/HB/HC/HD/HE/HDO/HO/HOO Display range: 0HA~100 HA (HB/HC/HD/HE/HDO/HOO/HMF/HF) Measuring range: 10HA~90 HA (HB/HC/HD/HE/HDO/HOO/HMF/HF) Resolution: 0.1H Low voltage prompt: √ Automatic shutdown function: √ Working environment: temperature: 0 º C~50 º C Humidity: ˂ 80%RH Power supply: 4 No. 7 batteries 2 No. 7 batteries (rack mountable)
