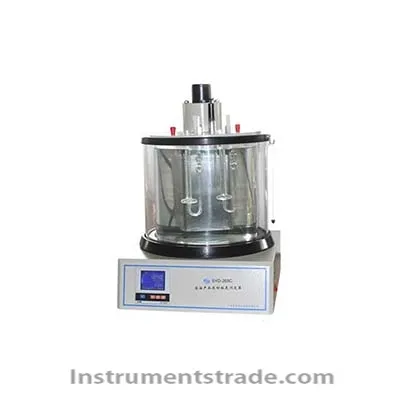

HSY-265C petroleum product kinematic viscosity tester

Product ID:HZSYydnd027

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHSY-265C
    Brand NameSHANGHAIQIGAO
    Payment TermsT/T, paypal
    HSY-265C petroleum product kinematic viscosity tester
    Introduction:
    The manufacture of HSY-265C petroleum product kinematic viscosity tester meets the requirements stipulated by the People's Republic of China industry standard SY/T 5651 "Technical Conditions for Petroleum Products Kinematic Viscosity Tester". The instrument is suitable for determining the kinematic viscosity of liquid petroleum products (referring to Newtonian liquid) under a constant temperature condition according to the technical regulations of the People's Republic of China standard GB/T 265 "Kinematic viscosity measurement method and dynamic viscosity calculation method". Applicable to the People's Republic of China standard GB/T1632.1 "Determination of the viscosity of polymer dilute solution using a capillary viscometer. Part 1: General principles" GBT1632.5 "Determination of viscosity of polymer dilute solution using a capillary viscometer. Part 5: Thermoplastics Technical requirements for poly- and copolymerized polyester (TP) are required by the People's Republic of China industry standard JTG E20-2011 "Testing procedures for asphalt and asphalt mixtures for highway engineering" in T0619-2011 "Asphalt kinematic viscosity test (capillary method)" Provision is made to determine the kinematic viscosity of liquid petroleum asphalt at a constant temperature (≤ 100 ° C). The biggest feature of this instrument is: full spray plastic treatment, durable; double-layer cylinder structure, high-precision temperature controller, accurate temperature control.
    Features:
    1. Adopt intelligent liquid crystal display temperature controller, which has rapid temperature control, fast response, small overshoot and temperature control accuracy of ±0.1 °C.
    2. It adopts hard glass cylinder and thermal insulation jacket cylinder (called double cylinder), which has good insulation performance and clear observation of samples.
    3, using desktop, one machine design, the instrument is good overall, easy to use.
    4, with a line control timing button, used for timing display and control during the experiment.
    5, using electric stirring device, the temperature inside the bathtub is even.
    Technical Parameters:
    1, working power: AC (220 ± 10%) V, 50Hz ± 5%.
    2. Heating power: 1600W.
    3. Stirring motor: Power 6W; speed 1200r/min.
    4, temperature range: room temperature ~ 100 ° C.
    5, temperature control accuracy: ± 0.1 ° C.
    6, constant temperature bath: capacity, 20L; form, inside and outside two-layer cylinder (double cylinder).
    7, the use of the environment: ambient temperature -10 ° C ~ +35 ° C, relative humidity <85%.
    8. Temperature sensor: Industrial platinum resistance, whose graduation number is Pt100.
    9. Power consumption of the whole machine: no more than 1800W.
    10. Capillary viscometer: The nature, specification and quantity of capillary viscometer are subject to the actual agreement of the business agreement.
    11. Dimensions: 530mm × 400mm × 670mm (length × width × height, including bathtub, etc.).

  • Introduction:
    The manufacture of HSY-265C petroleum product kinematic viscosity tester meets the requirements stipulated by the People's Republic of China industry standard SY/T 5651 "Technical Conditions for Petroleum Products Kinematic Viscosity Tester". The instrument is suitable for determining the kinematic viscosity of liquid petroleum products (referring to Newtonian liquid) under a constant temperature condition according to the technical regulations of the People's Republic of China standard GB/T 265 "Kinematic viscosity measurement method and dynamic viscosity calculation method". Applicable to the People's Republic of China standard GB/T1632.1 "Determination of the viscosity of polymer dilute solution using a capillary viscometer. Part 1: General principles" GBT1632.5 "Determination of viscosity of polymer dilute solution using a capillary viscometer. Part 5: Thermoplastics Technical requirements for poly- and copolymerized polyester (TP) are required by the People's Republic of China industry standard JTG E20-2011 "Testing procedures for asphalt and asphalt mixtures for highway engineering" in T0619-2011 "Asphalt kinematic viscosity test (capillary method)" Provision is made to determine the kinematic viscosity of liquid petroleum asphalt at a constant temperature (≤ 100 ° C). The biggest feature of this instrument is: full spray plastic treatment, durable; double-layer cylinder structure, high-precision temperature controller, accurate temperature control.
