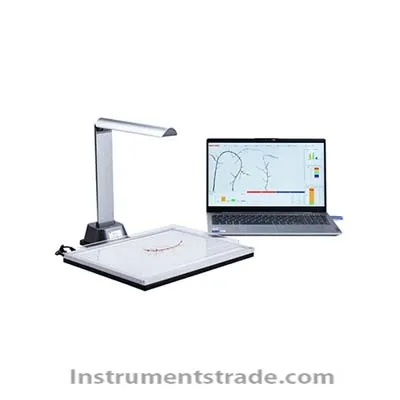

HM-GX01 Plant Root System Analyzer Introduction: The photo based plant root system analyzer is used for rapid photography and a multi parameter, batch automated analysis system for roots with a diameter of 0.5mm or more after cleaning. The entire system consists of a high-resolution camera, analysis software (PC end), and a computer (self provided), with an imaging speed 20 times faster than the scanning version. Technical parameters: 1. Equipped with a 20 million pixel color camera with autofocus. Effective analysis format * * 297mm × 210mm. Especially suitable for rapid and automatic analysis and measurement of roots with a diameter of 0.5mm or more. 2. Analyzable measurements: (1) Total root length; (2) Branch frequency; (3) Root average diameter; (4) Median root diameter; (5) * * Diameter; (6) Total root area; (7) Total projected area; (8) Total volume of roots; (9) Root tip counting; (10) Bifurcation counting; (11) Overlap counting; (12) Root diameter level distribution parameters; (13) Customizable segmented diameters with unequal spacing, automatically measuring the length, projected area, surface area, volume, and distribution parameters of each diameter segment. (14) Can conduct color analysis of roots, determine the number of surviving roots, and output the diameter, length, projected area, surface area, and volume of roots with different colors. (15) It can perform topology analysis of the root system, automatically determine the number of root connections, relationship angles, etc. It can also independently and automatically analyze the length, area, volume, etc. of the main root or any lateral root. It can display the corresponding parameters of any diameter segment of the marked root system separately (customizable at unequal intervals). (16) Can automatically measure the fractal dimension of the root system using the box dimension method. The proportion of rhizobia volume in the root system can be analyzed to objectively determine the contribution of rhizobia. (17) Large scale fully automated root system analysis, with editable and corrected graphs for each analysis result. (18) Can perform large-scale automated estimation of root biomass distribution. (19) Analyze the characteristics of ground angle, horizontal angle, and main root extraction. (20) Each analysis image, distribution map, and result data can be saved and output to an Excel sheet, which can also output analysis marker maps. (21) The instrument has cloud platform support and can save analysis data to the cloud for viewing anytime, anywhere.
Introduction: The photo based plant root system analyzer is used for rapid photography and a multi parameter, batch automated analysis system for roots with a diameter of 0.5mm or more after cleaning. The entire system consists of a high-resolution camera, analysis software (PC end), and a computer (self provided), with an imaging speed 20 times faster than the scanning version.
