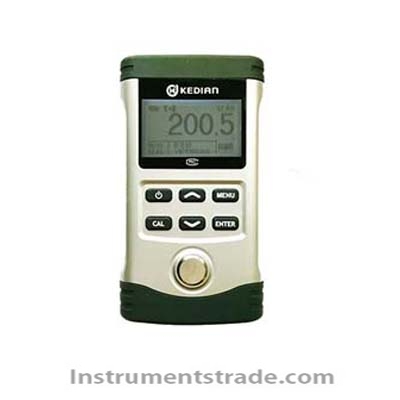

Introduction: Ultrasonic Thickness Gauge HCH-30000E/E adopts the new technology of single-chip microcomputer and CPLD integrated system, and is an intelligent ultrasonic thickness gauge integrating transmit-echo mode and echo-echo mode. With a lightweight and ergonomic one-handed design, it provides a cost-effective measurement solution for many applications requiring rapid inspection of coated metal-walled materials. Features: 1. There are two measurement methods of primary bottom wave and echo-echo 2. Pulse to echo mode (standard mode, used for ordinary thickness measurement) 3. Echo-echo mode (coating mode, used to measure the net thickness of the substrate without removing the paint layer) 4. Reverse measurement of sound speed: The sound speed of the material can be reversely measured according to the thickness of the known material 5. Automatic sensitivity gain optimization - automatically adjust the sensitivity to make the measurement more accurate 6. The probe is automatically recognized, and a variety of probes can be selected 7. Minimum scan mode, 10 times per second, quickly measure and capture the minimum value 8. The upper and lower alarm thresholds can be set. When the measured thickness exceeds the threshold, an alarm signal will be given. 9. Difference mode: The measured thickness is compared with the set base value, and the difference value is displayed on the screen 10. Large-capacity storage, data grouping management 11. Printout can communicate with PC Technical parameter: 1. Measuring range: 0.8～500mm (standard mode) 3.0～20mm (coating mode), depending on the probe used, the material to be measured, the surface condition 2. Display resolution: 0.01mm, 0.1mm optional 3. Display mode: LCD display (with backlight) 4. Storage method: manual storage method 5. Measurement error: when the resolution is 0.01mm and the thickness H<10mm, the indication error is ±0.05mm When the resolution is 0.01mm and the thickness H≥10mm, the indication error is ±(0.1%H+0.05)mm When the resolution is 0.1mm, the indication error is ±(1%H+0.1)mm 6. Sound speed range: 1000-9999m/s 7. Use environment: -10°C - +60°C, relative humidity less than 90% 8. Power supply: 2 AA batteries 9. Size/Weight: 146×81×30mm 300g
Introduction: Ultrasonic Thickness Gauge HCH-30000E/E adopts the new technology of single-chip microcomputer and CPLD integrated system, and is an intelligent ultrasonic thickness gauge integrating transmit-echo mode and echo-echo mode. With a lightweight and ergonomic one-handed design, it provides a cost-effective measurement solution for many applications requiring rapid inspection of coated metal-walled materials.
