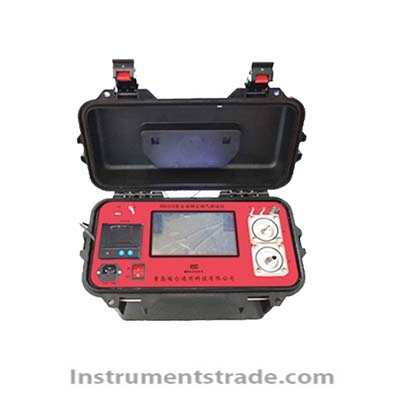

HB6020 Automatic Fume Tester Introduction
HB6020 automatic soot and smoke tester is suitable for measuring soot, smoke, soot, asphalt, and semi-volatile organic compounds. The automatic soot and smoke analyzer uses an industrial-grade micro PC as the main control platform of the instrument. Based on the advanced technology of domestic and foreign countries, it has developed a new generation of intelligent automatic smoke and dust tester. Features
1. Integrated machine can measure flue gas, smoke, moisture content, flow rate, dynamic pressure, static pressure, smoke temperature, oil fume (such as O2, SO2, NO, NO2, CO, CO2, H2S) flue gas emissions , Air excess coefficient and other parameters.
2.Double automatic tracking sampling method
Constant speed sampling and constant current sampling can be performed according to different sampling methods. The smoke and dust sampling is based on the pitot tube parallel constant velocity sampling principle, which can automatically track the smoke velocity constant velocity sampling or constant current sampling (when the flow velocity is low); when the smoke sampling, constant flow sampling technology
3.Automatic determination of various operating parameters of flue gas
The instrument integrates temperature / pressure / flow / oxygen sensors, which can measure dynamic pressure, static pressure, flue gas flow rate, moisture content,
Oxygen content,
4. Flue gas flow measurement and control uses imported pressure sensors and imported electrochemical sensors to make measurement results more accurate. The integrated design of the electrochemical sensor and signal module does not require calibration when replacing the sensor, and it has temperature and linear compensation and cross-interference correction functions to ensure test accuracy. The soot sampling flow sensor uses an inner cone flowmeter, which has a wide range, good linearity, and high accuracy in flow measurement.
5.Multi-level photoelectric isolation technology
Multi-level photoelectric isolation technology for sensing signals, strong anti-interference ability, making the measurement more stable and reliable
6.Dual-core host structure, strong system reliability and high stability
Adopt dual CPU structure, monitor each other's working status, and find errors in time to correct; digital communication technology is used between CPUs, and input and output channels are all optically isolated to make the instrument work normally under strong interference
7, automatic storage of sampling data
Can store 200 sets of complete sampling data for users to query in real time
8.Custom print data function
There is a lot of sampled data. Users can customize the printed data according to their needs, which is convenient and fast.
9. The unique drying, filtering, and anti-back suction three-in-one design drying cylinder can efficiently dry moisture, filter dust, and down suction to reduce the impact on the flow rate and achieve long-term operation without cleaning.
10, power failure memory function
Power failure during the sampling process, the sampler can automatically save the sampling data, and automatically continue sampling after a call
11. User password protection function, the user can choose and modify the instrument password
12. Collect SVOC samples (optional for users)
Introduction
HB6020 automatic soot and smoke tester is suitable for measuring soot, smoke, soot, asphalt, and semi-volatile organic compounds. The automatic soot and smoke analyzer uses an industrial-grade micro PC as the main control platform of the instrument. Based on the advanced technology of domestic and foreign countries, it has developed a new generation of intelligent automatic smoke and dust tester.
