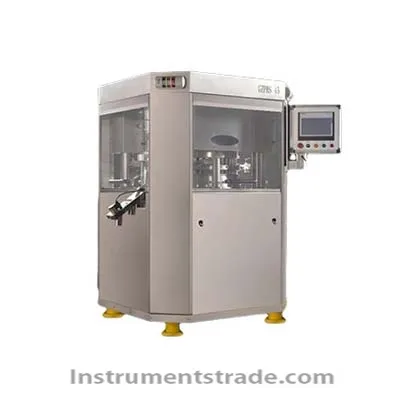

GZPS-660 Double Discharge High Speed Rotary Tablet Press Introduction: The GZPS-660 dual discharge high-speed rotary tablet press has undergone continuous technological innovation and improvement, and is characterized by high automation, good operability, fast production speed, strong stability, and low working noise. characteristic: The main motor of the tablet press is driven by an AC variable frequency stepless speed regulator, and after being reduced by a worm gear, it drives the turntable to rotate. The rotation of the turntable causes relative upward and downward movement of the upper and lower punch heads under the action of the guide rail. Particles or powders are compressed into tablets through processes such as filling, pre pressing, main pressing, and discharging. During the entire tablet pressing process, the control system automatically controls the weight of the tablets by detecting, transmitting, calculating, and processing pressure signals. The waste tablets are automatically rejected, sampled, and fault displayed. Technical parameters: Number of punches: 45 punches Maximum production: 405000 Maximum speed: 75rps/min Maximum compression diameter (mm): 25 Maximum irregular long axis (mm): 25 Maximum main pressure: 100KN Maximum pre pressure: 20KN Maximum filling depth (mm): 20 Tablet thickness range (mm): 0.5-8 Depth of upper punch into mold (mm): 2-6 Main motor power: 11KW Body size (mm): 1704X1380X1926 Net weight (KGS): 4125
Introduction: The GZPS-660 dual discharge high-speed rotary tablet press has undergone continuous technological innovation and improvement, and is characterized by high automation, good operability, fast production speed, strong stability, and low working noise.
