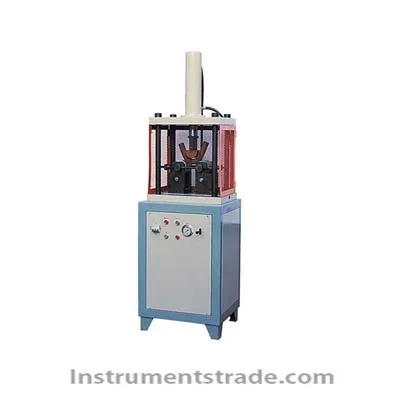

Introduction: Vertical steel bending test machine according to the national standard "metal bending test method" (GB232-88) the provisions of the development. Bends up to φ40 less than HRB400. Its structural performance in full compliance with test specifications, with two support rollers, roller spacing adjustable, optional different diameter of the curved heart, curved heart diameter by the relevant standards; The instrument is reliable and easy to operate. Technical Parameters : 1, the maximum bending diameter: Φ40mm 2, piston work stroke: S = 270mm 3, pump working pressure: P = 30Mpa 4, piston rising speed: V1 = 160mm / min 5, the piston down speed: V2 = 80mm / min 6, motor power: N = 0.37KW 7, working voltage: 380V / 50Hz 8, the whole weight: 400Kg 9, Dimensions: 550x380x1800mm 10, the maximum test force: 160KN Working conditions: 1, at room temperature 10 ° C ~ 35 ° C range, relative humidity ≤ 80%; 2, on a solid foundation or workbench; 3, no vibration and surrounding non-corrosive media environment; 4, the power supply voltage fluctuation range should not exceed ± 10% of the rated voltage.
